mP12-SiO2 (Inverse)

mP12–SiO₂ (Inverse)

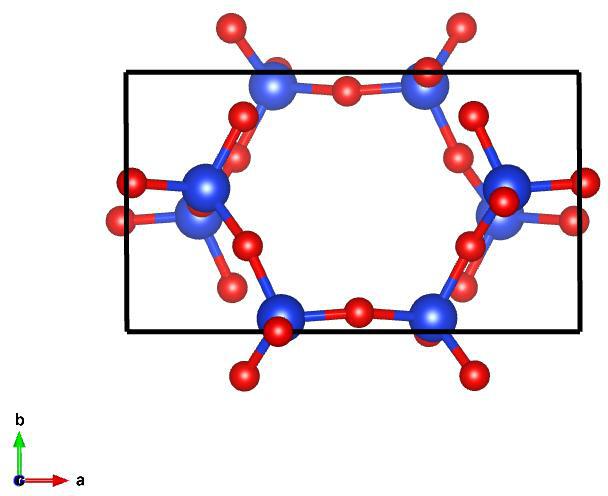

Image of mP12–SiO₂ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= 1.6388538784~\hat{y}\\ a_3 &= -0.4966485129~\hat{x} + 0.8732302957~\hat{z}\\\end{split}\]

Space Group: 4

Point Group of Structure: \(2\)

Structure DOI: https://doi.org/10.17188/1269045

Source: Inorganic Crystallographic Database #56473

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

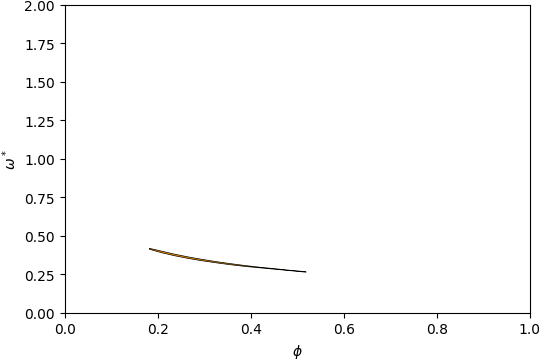

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

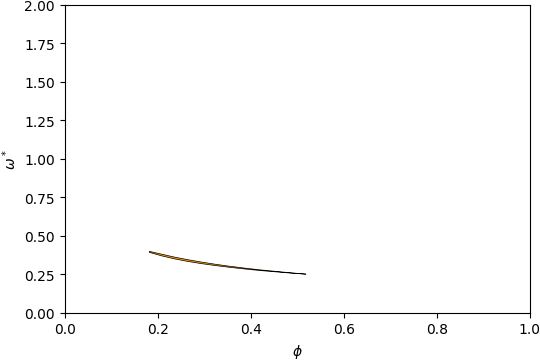

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

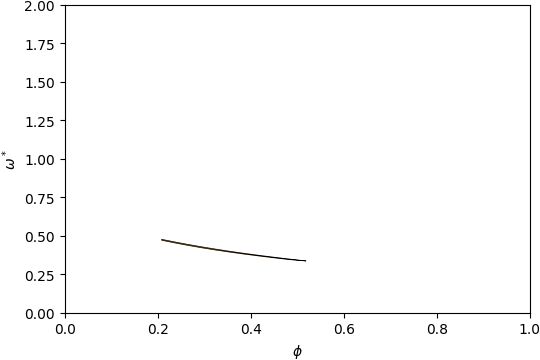

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 8\)

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 6\)

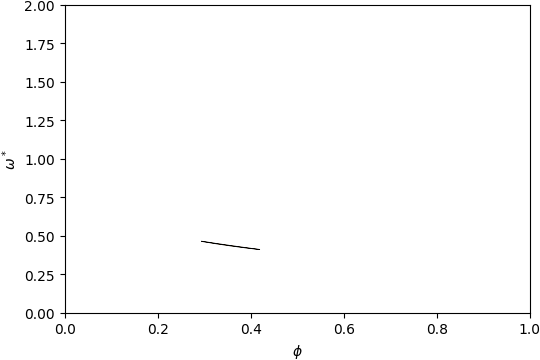

Gap Atlas for \(\varepsilon\) = 6 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 4\)

Gap Atlas for \(\varepsilon\) = 4 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 4-5

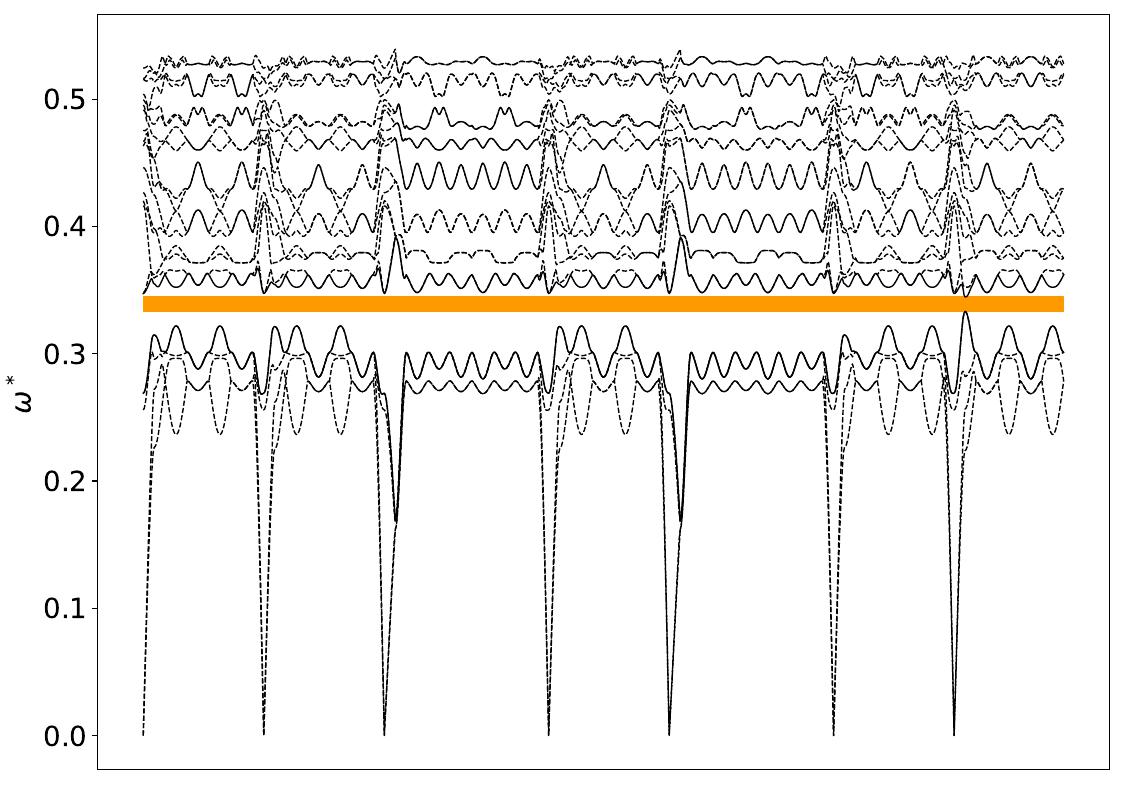

Below is the band structure and isosurface of mP12–SiO₂ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.35\) and filling fraction \(\phi = 0.265\).

Band Structure across first Brillouin Zone.

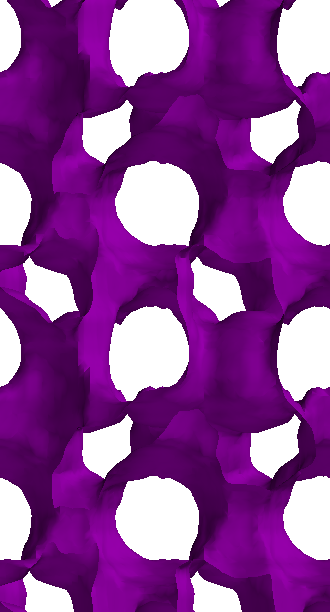

View along \(a_1\).

Gap between Bands 16-17

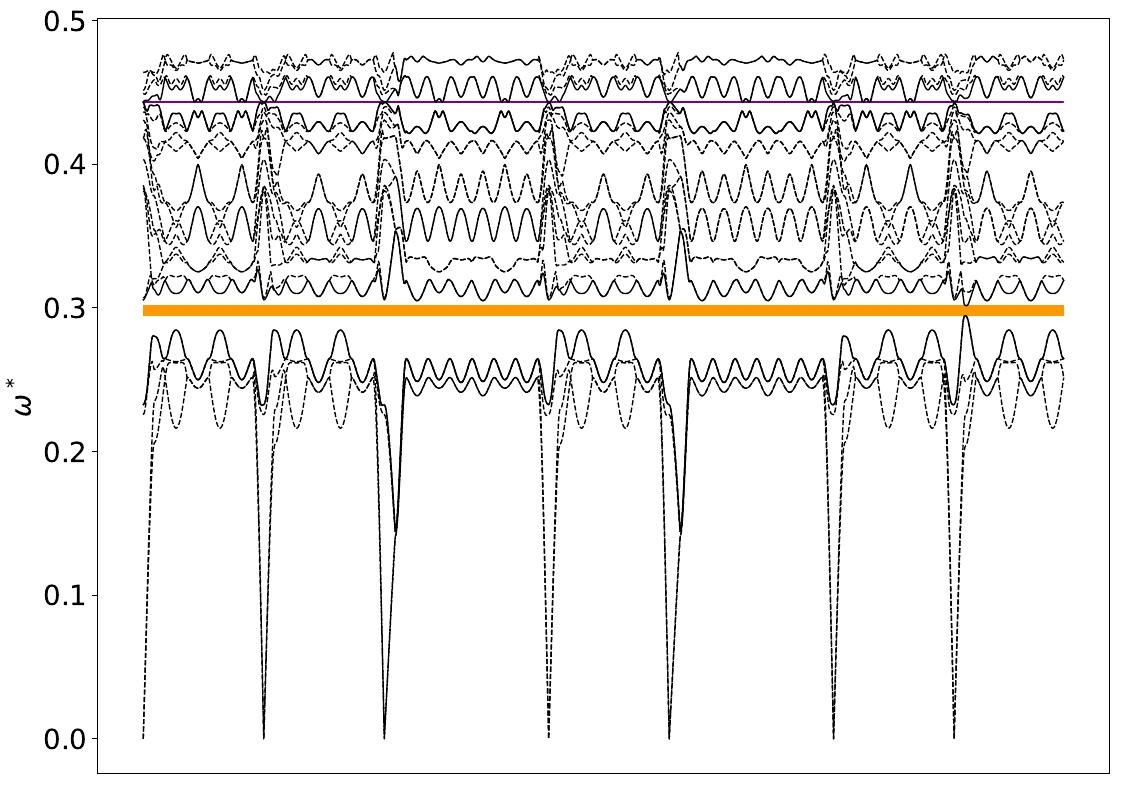

Below is the band structure and isosurface of mP12–SiO₂ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.32\) and filling fraction \(\phi = 0.355\).

Band Structure across first Brillouin Zone.

View along \(a_1\).
