mC24-Ag2TeS3 (Inverse)

mC24–Ag₂TeS₃ (Inverse)

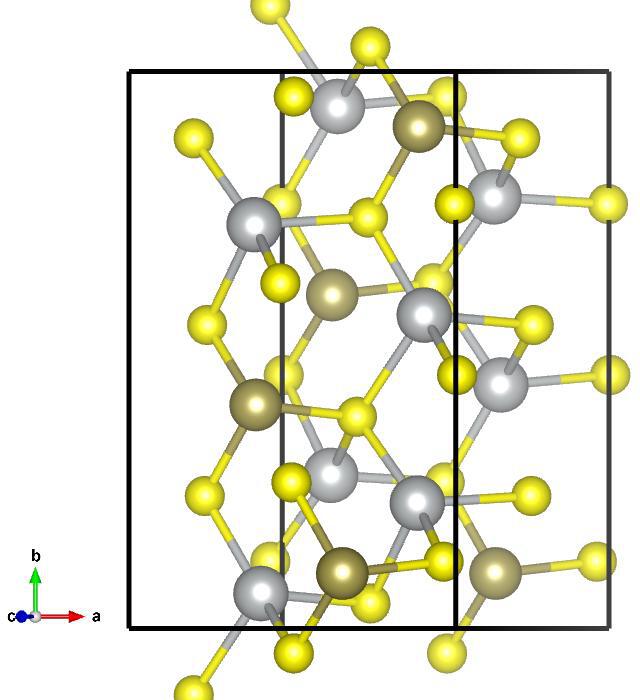

Image of mC24–Ag₂TeS₃ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= 0.5058496261~\hat{x} - 0.862621676~\hat{y}\\ a_2 &= 0.5058496261~\hat{x} + 0.862621676~\hat{y}\\ a_3 &= -0.4747369094~\hat{x} + 1.0446124778~\hat{z}\\\end{split}\]

Space Group: 9

Point Group of Structure: \(m\)

Structure DOI: https://doi.org/10.1007/BF00807304

Source: Crystallographic Open Database #1509712

MPB Epsilon Input File: Download

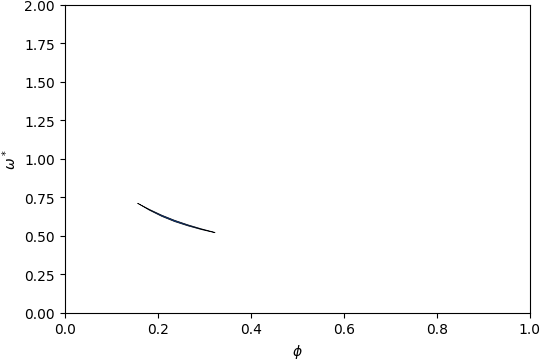

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

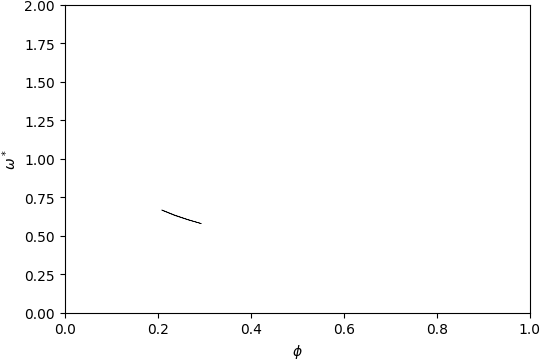

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

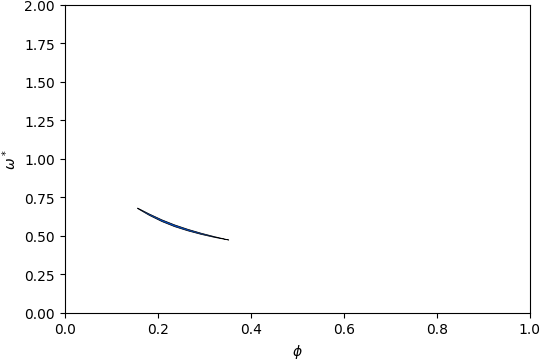

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 12-13

Below is the band structure and isosurface of mC24–Ag₂TeS₃ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.255\) and filling fraction \(\phi = 0.237\).

Band Structure across first Brillouin Zone.

View along \(a_1\).
