oP6-NaO2 (Inverse)

oP6–NaO₂ (Inverse)

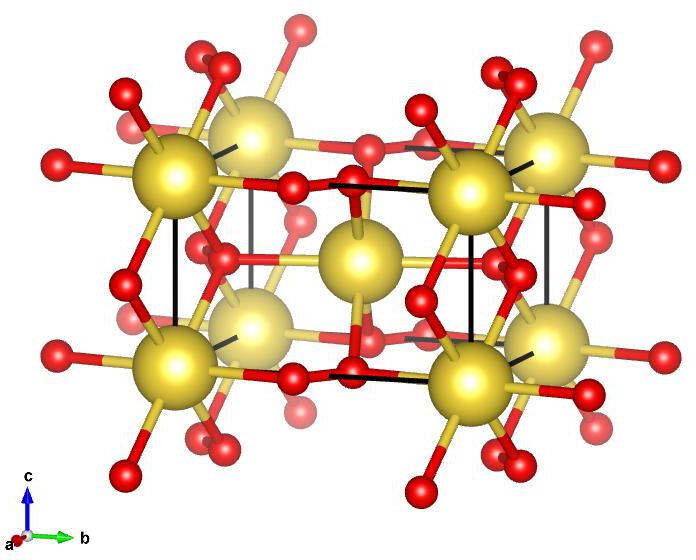

Image of oP6–NaO₂ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= 1.3004694047~\hat{y}\\ a_3 &= 0.8075117071~\hat{z}\\\end{split}\]

Space Group: 58

Point Group of Structure: \(mmm\)

Structure DOI: https://doi.org/10.1021/ja01117a031

Source: Crystallographic Open Database #4124631

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

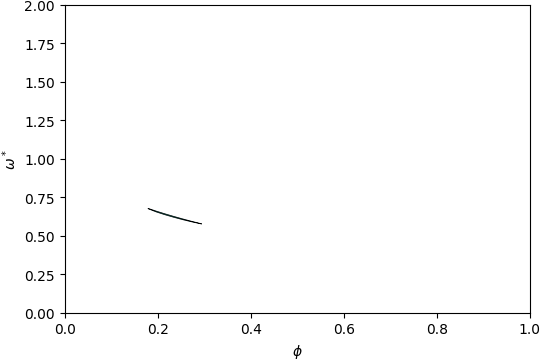

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

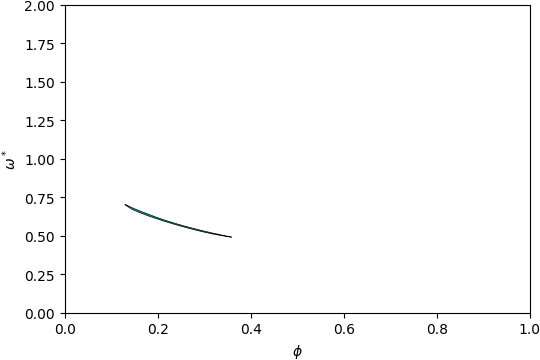

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

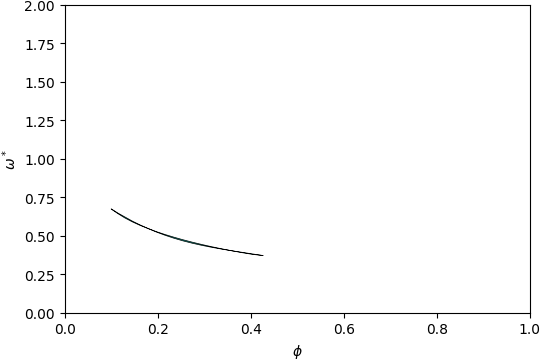

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 8\)

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 6\)

Gap Atlas for \(\varepsilon\) = 6 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 8-9

Below is the band structure and isosurface of oP6–NaO₂ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.34\) and filling fraction \(\phi = 0.254\).

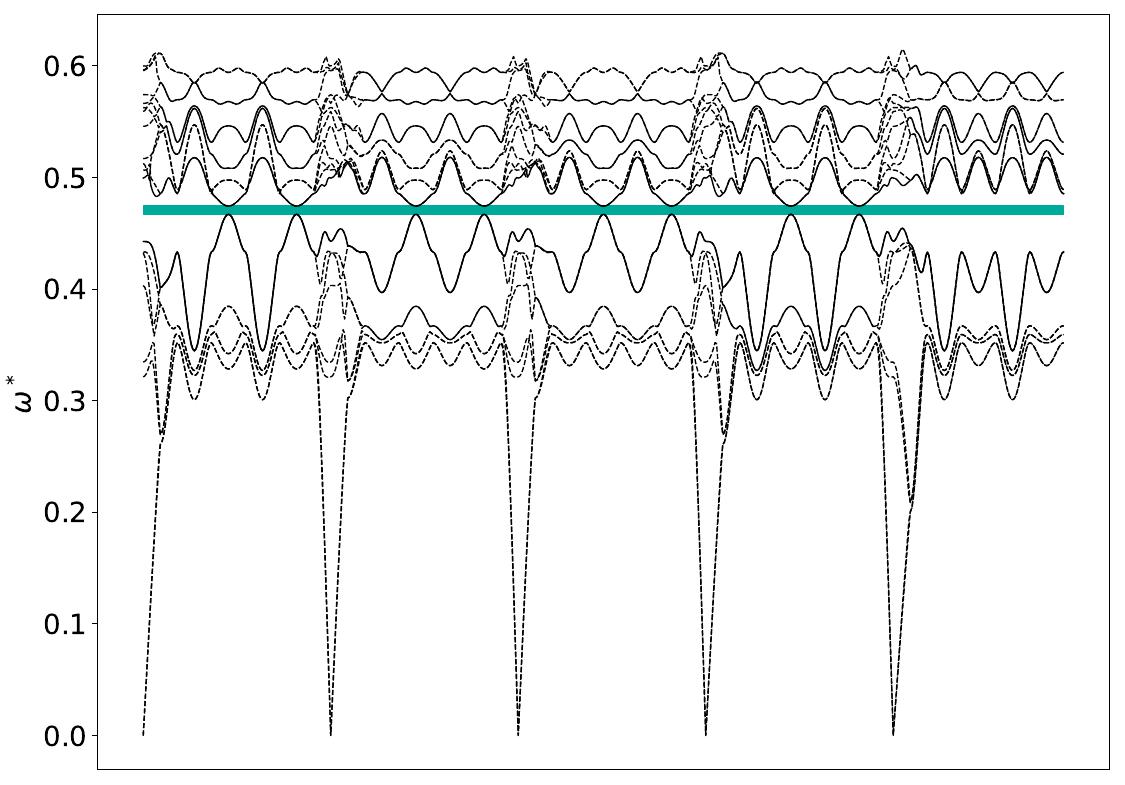

Band Structure across first Brillouin Zone.

View along \(a_1\).
