tI40-KPD4O4 (Direct)

tI40–KPD₄O₄ (Direct)

Image of tI40–KPD₄O₄ (Direct), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= -0.5900403851~\hat{x} + 0.5900403851~\hat{y} + 0.5510940826~\hat{z}\\ a_2 &= 0.5900403851~\hat{x} - 0.5900403851~\hat{y} + 0.5510940826~\hat{z}\\ a_3 &= 0.5900403851~\hat{x} + 0.5900403851~\hat{y} - 0.5510940826~\hat{z}\\\end{split}\]

Space Group: 122

Point Group of Structure: \(\bar{42}m\)

Structure DOI: https://doi.org/10.1143/JPSJ.62.959

Photonics DOI: Gap(s) for space group 122 above band 2 theorized in: https://doi.org/10.1103/PhysRevLett.121.263903

Source: Crystallographic Open Database #1530876

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

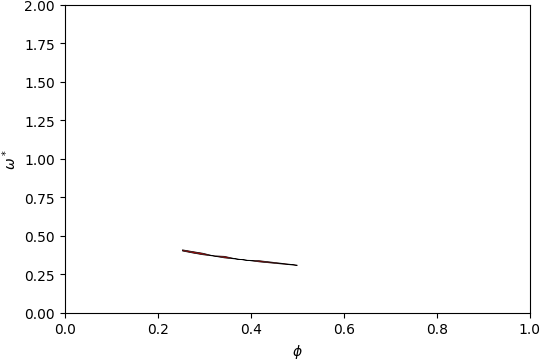

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

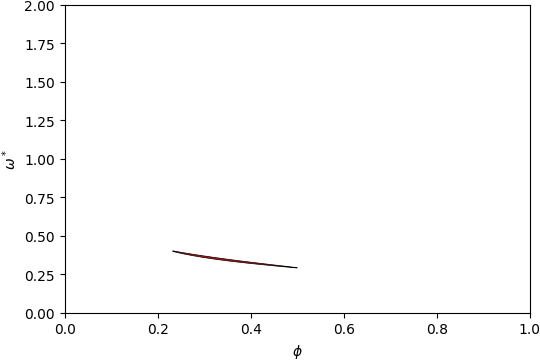

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

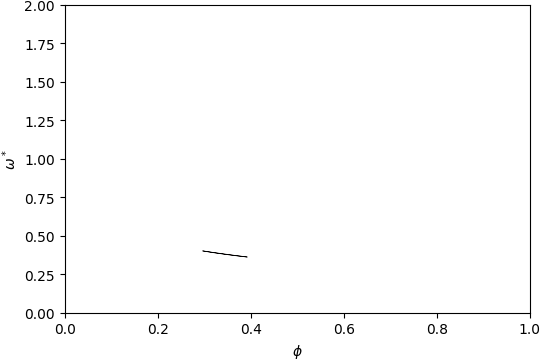

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 2-3

Below is the band structure and isosurface of tI40–KPD₄O₄ (Direct) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.165\) and filling fraction \(\phi = 0.32\).

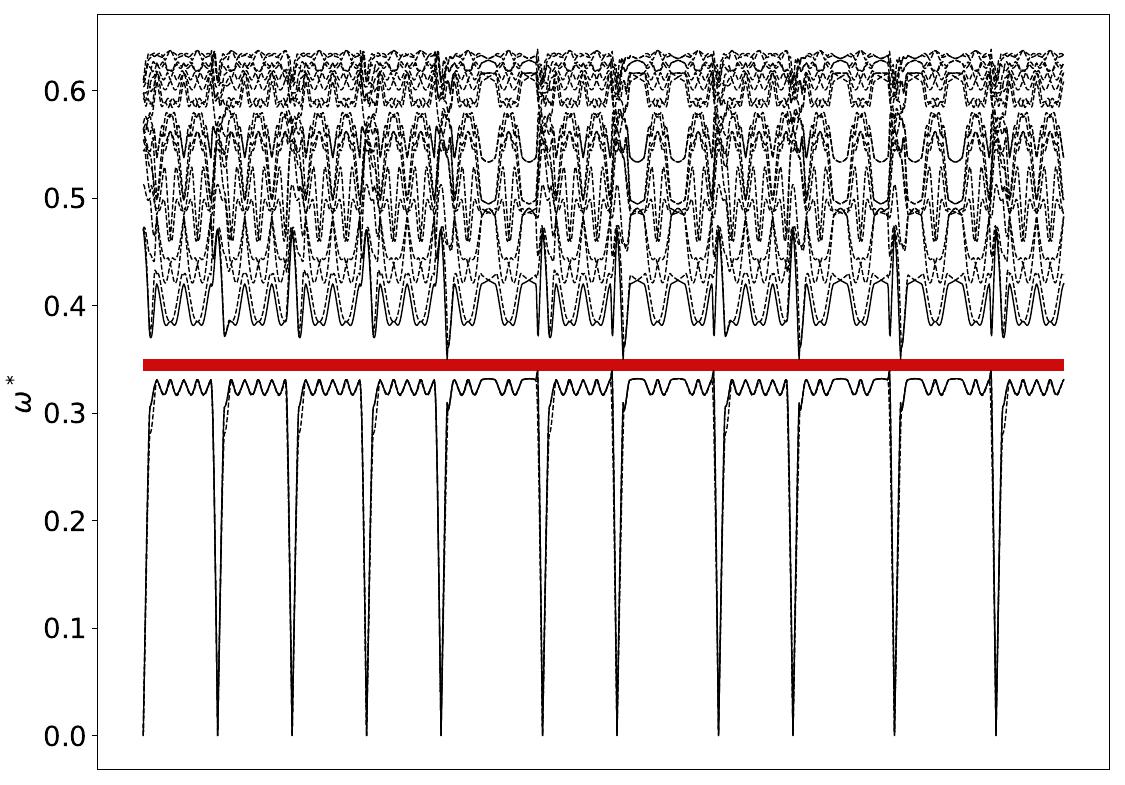

Band Structure across first Brillouin Zone.

View along \(a_1\).
