tP4-AgI (Inverse)

tP4–AgI (Inverse)

Image of tP4–AgI (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= ~\hat{y}\\ a_3 &= 1.3100436899~\hat{z}\\\end{split}\]

Space Group: 129

Point Group of Structure: \(4/mmm\)

Structure DOI: https://doi.org/10.1063/1.1669466

Source: Crystallographic Open Database #1509387

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 4-5

Below is the band structure and isosurface of tP4–AgI (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.45\) and filling fraction \(\phi = 0.147\).

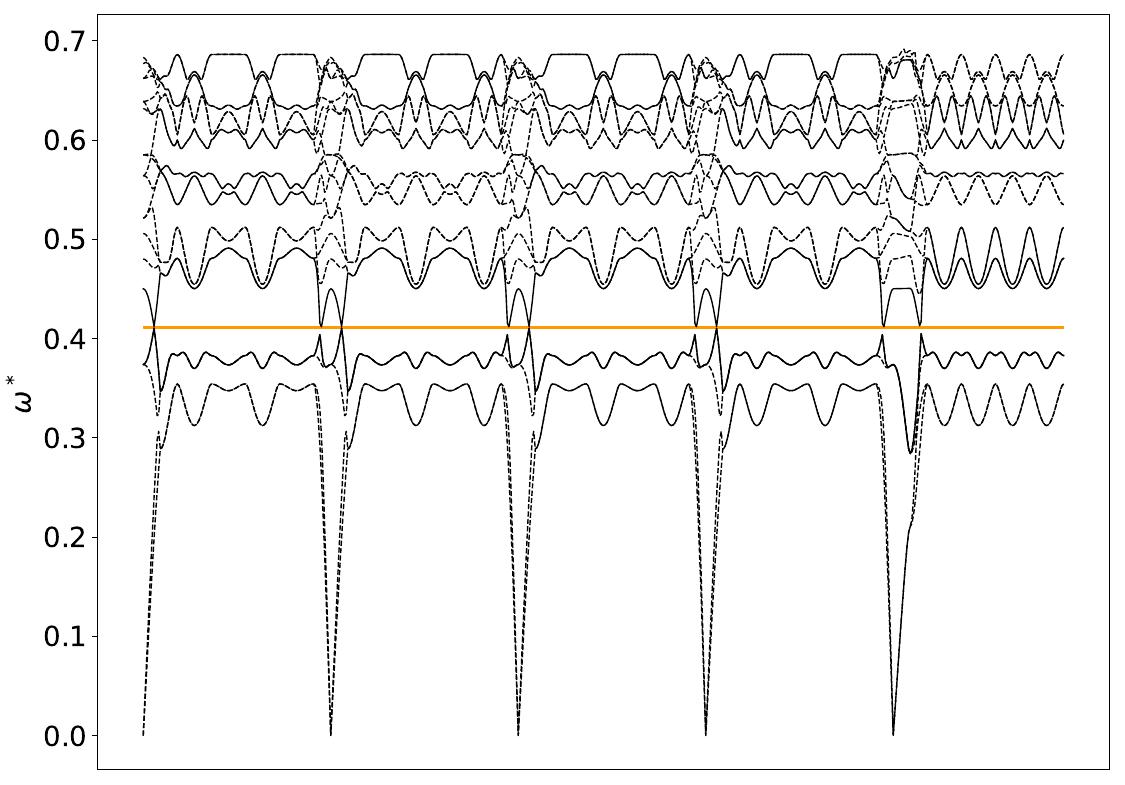

Band Structure across first Brillouin Zone.

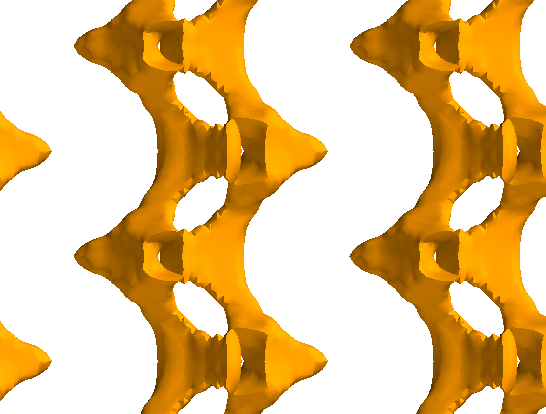

View along \(a_1\).
