cF136-Si (Inverse)

cF136–Si (Inverse)

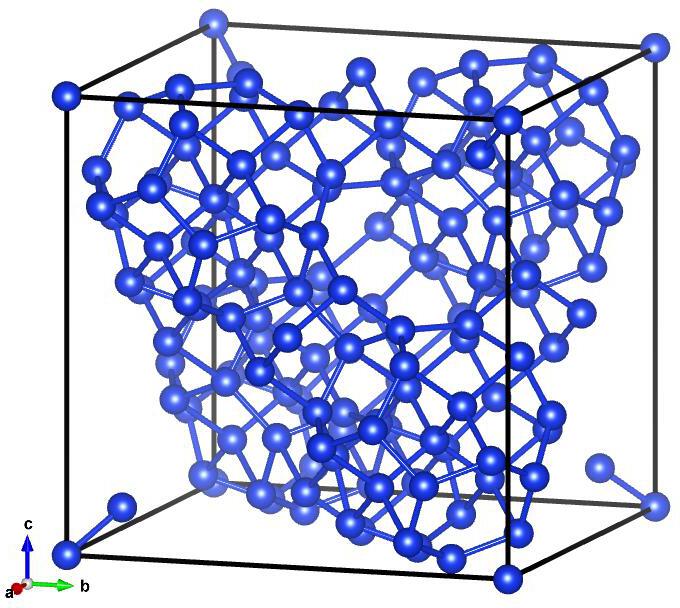

Image of cF136–Si (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= 1/\sqrt{2}~\hat{y} + 1/\sqrt{2}~\hat{z}\\ a_2 &= 1/\sqrt{2}~\hat{x} + 1/\sqrt{2}~\hat{z}\\ a_3 &= 1/\sqrt{2}~\hat{x} + 1/\sqrt{2}~\hat{y}\\\end{split}\]

Space Group: 227

Point Group of Structure: \(m\bar{3}m\)

Structure DOI: https://doi.org/10.1103/PhysRevB.60.950

Photonics DOI: Gap(s) for space group 227 above band(s) 2 theorized in: https://doi.org/10.1038/nmat979

Source: Inorganic Crystallographic Database #56721

MPB Epsilon Input File: Download

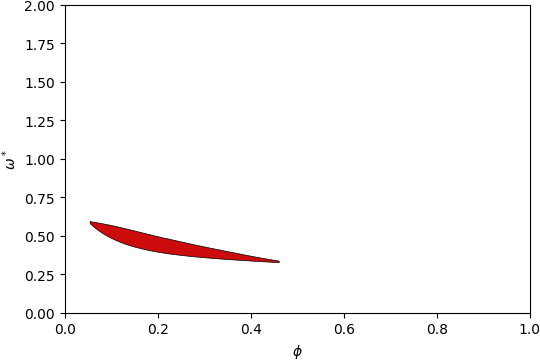

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

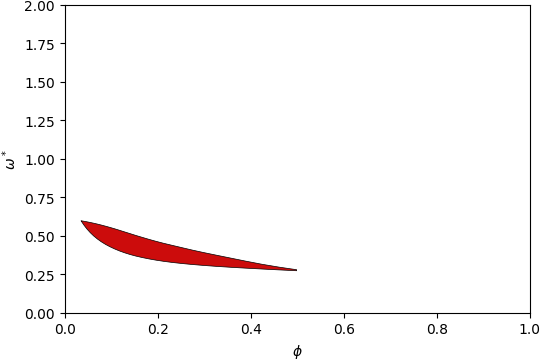

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

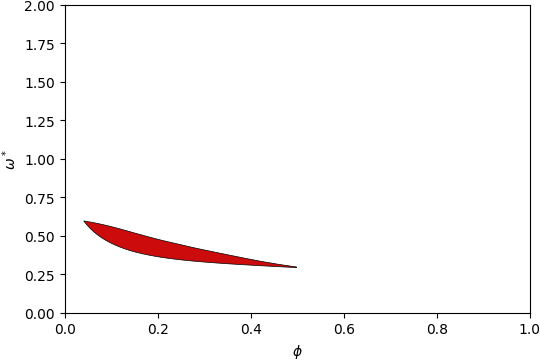

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

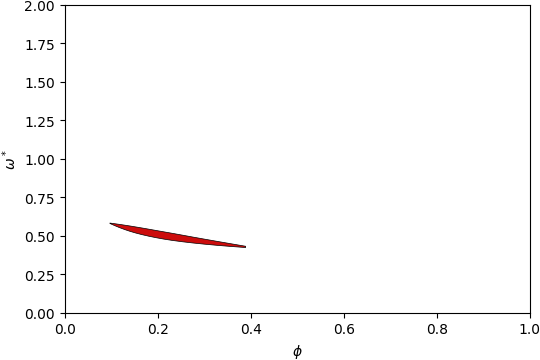

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

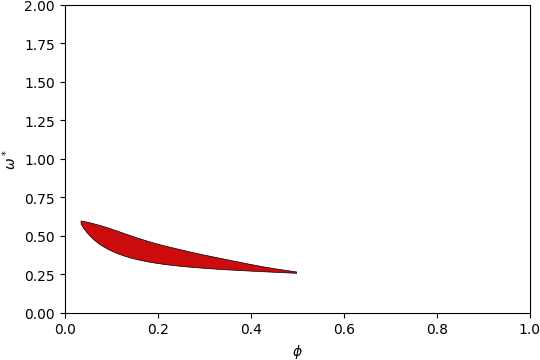

Gap Atlas for \(\varepsilon = 8\)

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 6\)

Gap Atlas for \(\varepsilon\) = 6 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 4\)

Gap Atlas for \(\varepsilon\) = 4 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 2-3

Below is the band structure and isosurface of cF136–Si (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.21\) and filling fraction \(\phi = 0.153\).

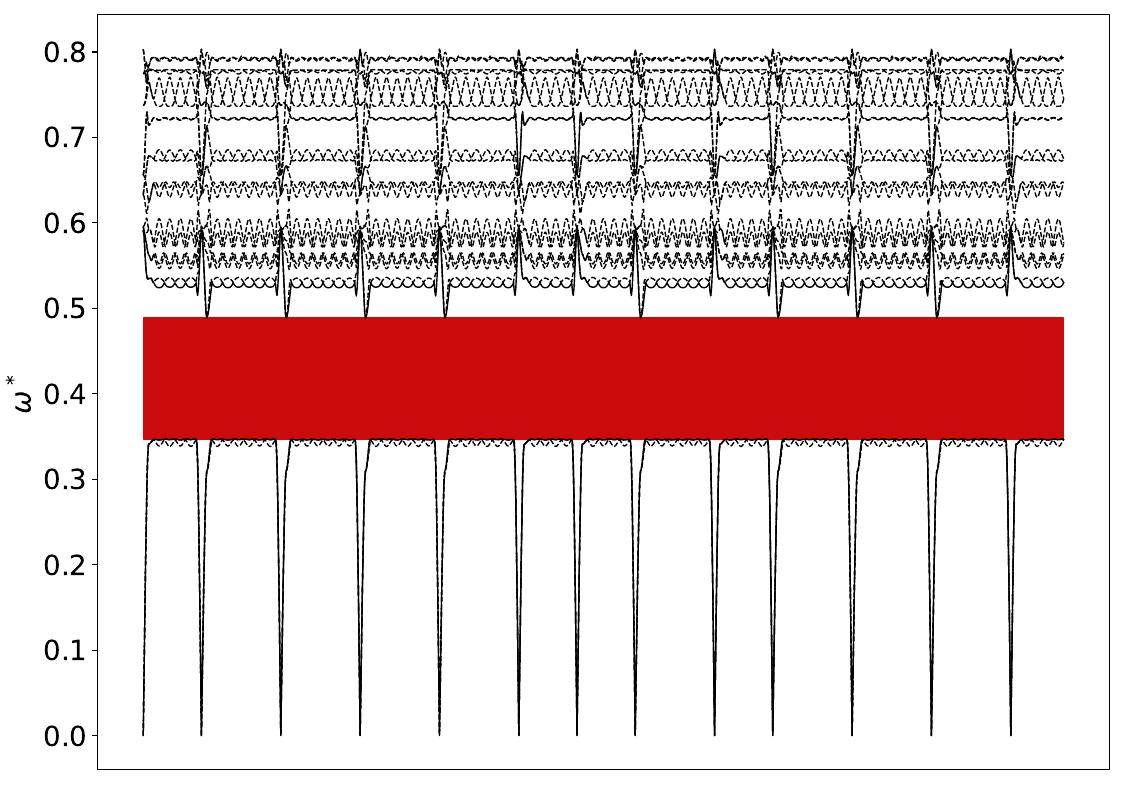

Band Structure across first Brillouin Zone.

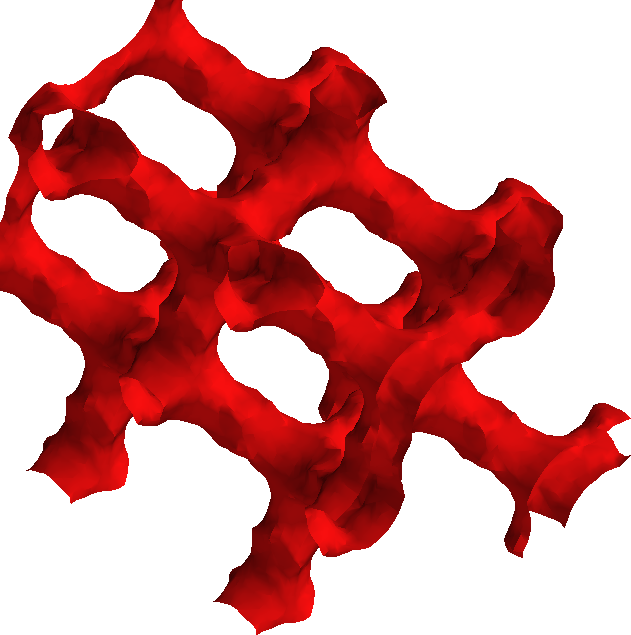

View along \(a_1\).
