oP12-CdP2 (Direct)

oP12–CdP₂ (Direct)

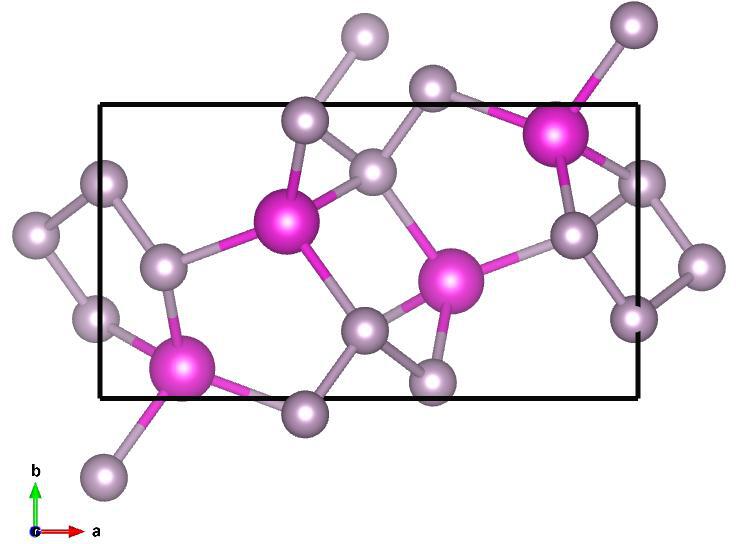

Image of oP12–CdP₂ (Direct), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= 0.5462626465~\hat{y}\\ a_3 &= 0.5223232528~\hat{z}\\\end{split}\]

Space Group: 33

Point Group of Structure: \(mm2\)

Structure DOI: https://doi.org/10.1107/S0567740869005723

Source: Crystallographic Open Database #2106966

MPB Epsilon Input File: Download

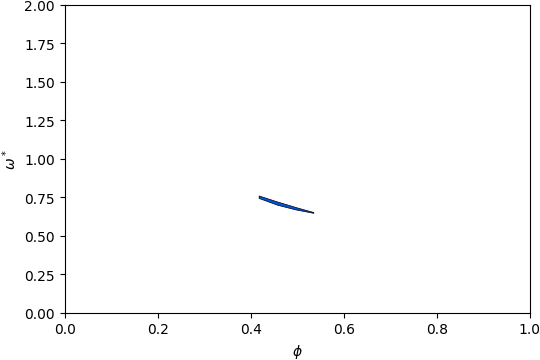

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

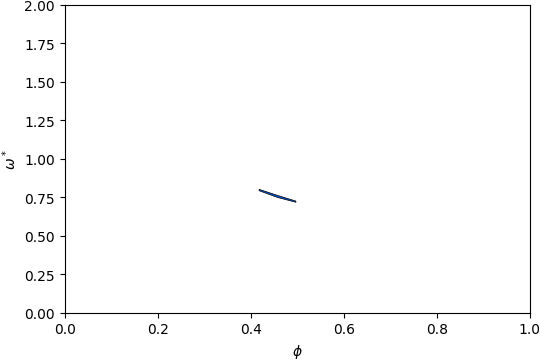

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

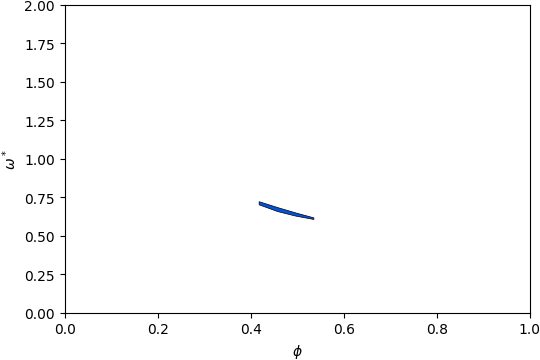

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 12-13

Below is the band structure and isosurface of oP12–CdP₂ (Direct) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.14\) and filling fraction \(\phi = 0.378\).

Band Structure across first Brillouin Zone.

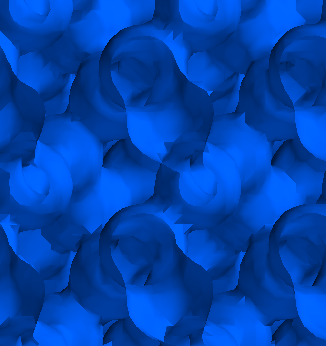

View along \(a_1\).
