cF24-SiO2 (Direct)

cF24–SiO₂ (Direct)

Image of cF24–SiO₂ (Direct), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= 1/\sqrt{2}~\hat{y} + 1/\sqrt{2}~\hat{z}\\ a_2 &= 1/\sqrt{2}~\hat{x} + 1/\sqrt{2}~\hat{z}\\ a_3 &= 1/\sqrt{2}~\hat{x} + 1/\sqrt{2}~\hat{y}\\\end{split}\]

Space Group: 227

Point Group of Structure: \(m\bar{3}m\)

Structure DOI: https://doi.org/10.1524/zkri.1992.201.1-2.125

Photonics DOI: Gap(s) for space group 227 above band(s) 2 theorized in: https://doi.org/10.1038/nmat979

Source: Inorganic Crystallographic Database #77460

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

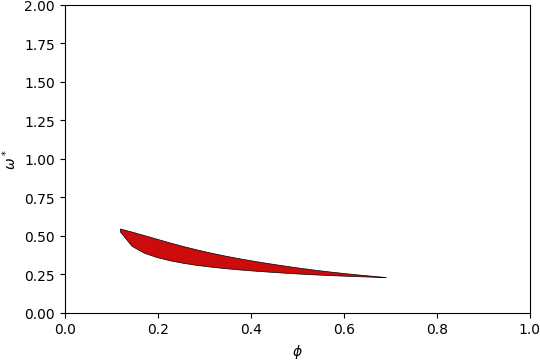

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

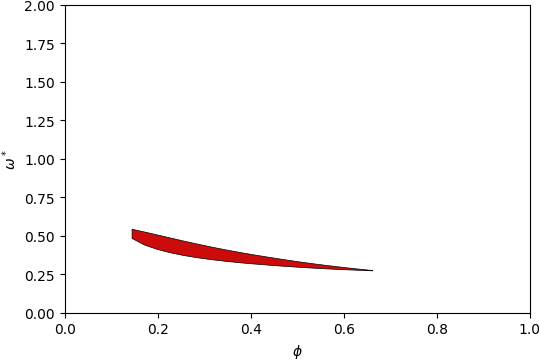

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

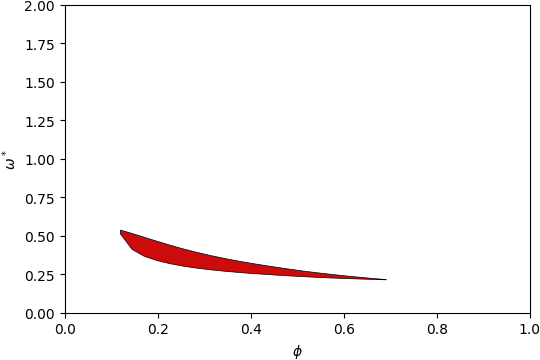

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

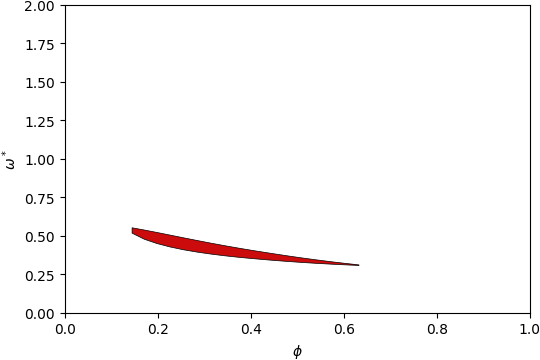

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 8\)

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 6\)

Gap Atlas for \(\varepsilon\) = 6 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 4\)

Gap Atlas for \(\varepsilon\) = 4 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 2\)

Gap Atlas for \(\varepsilon\) = 2 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 2-3

Below is the band structure and isosurface of cF24–SiO₂ (Direct) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.19\) and filling fraction \(\phi = 0.227\).

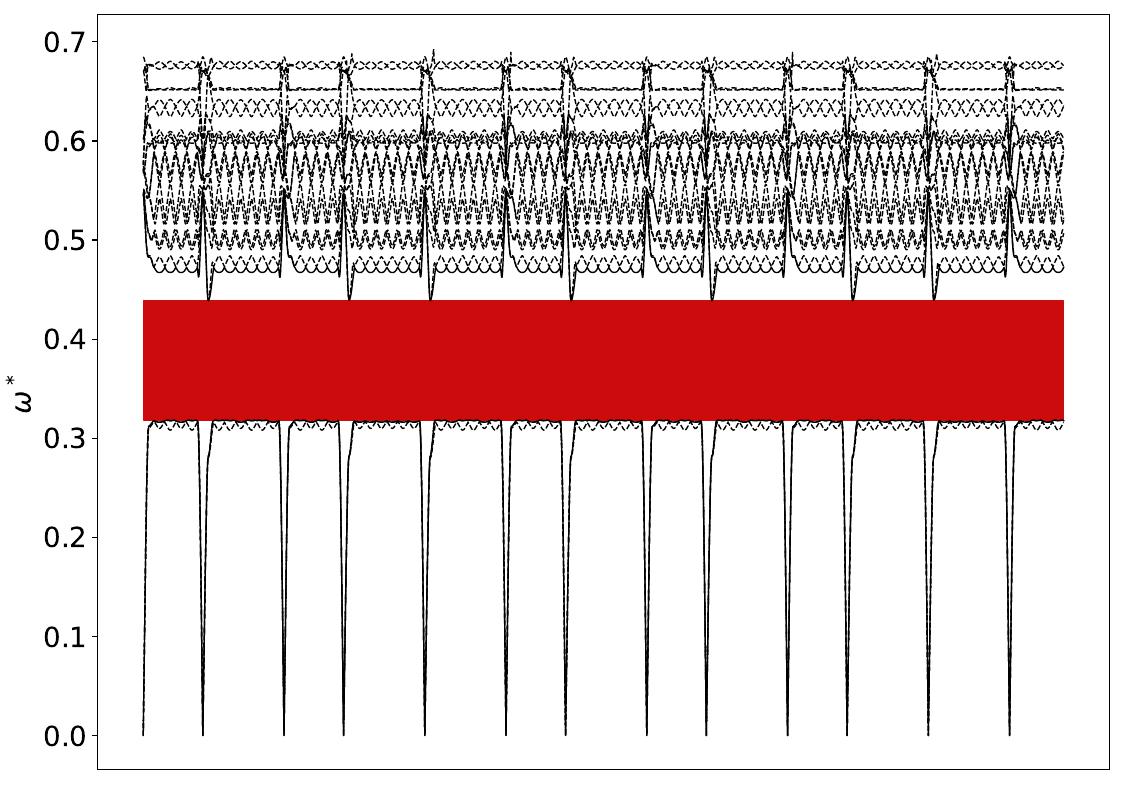

Band Structure across first Brillouin Zone.

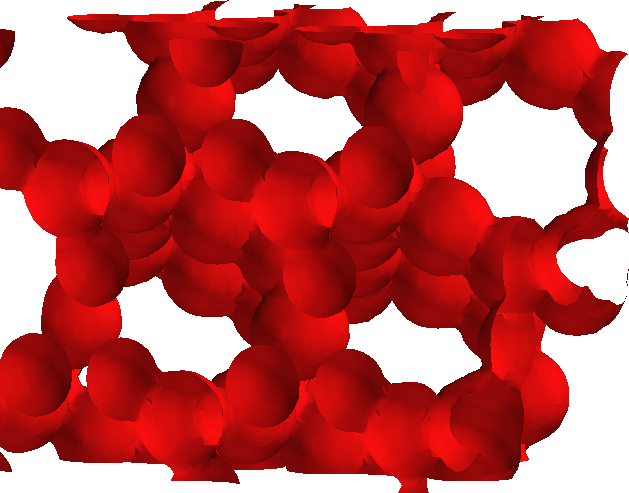

View along \(a_3\).
