hP20-ZnC2N2 (Inverse)

hP20–ZnC₂N₂ (Inverse)

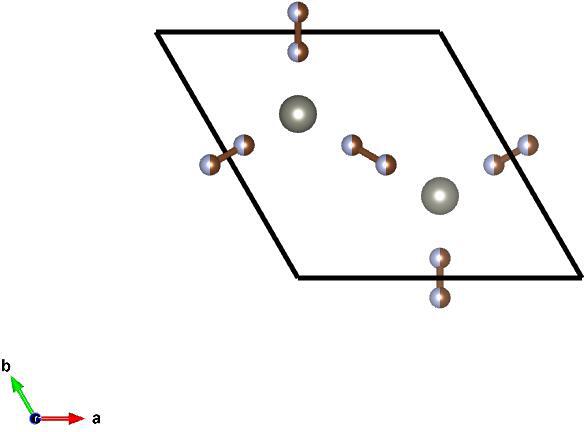

Image of hP20–ZnC₂N₂ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= -1/2~\hat{x} + \sqrt{3}/\sqrt{4}~\hat{y}\\ a_3 &= 1.6028491392~\hat{z}\\\end{split}\]

Space Group: 194

Point Group of Structure: \(6/mmm\)

Structure DOI: https://doi.org/10.1021/ja4012707

Source: Crystallographic Open Database #4119777

MPB Epsilon Input File: Download

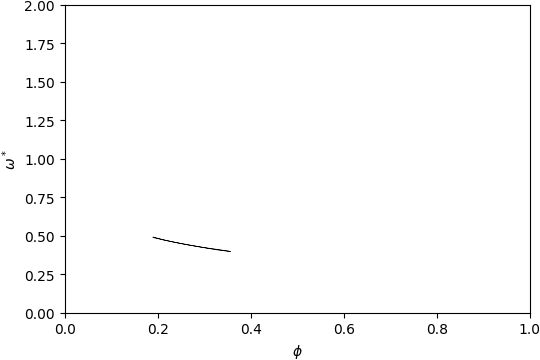

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

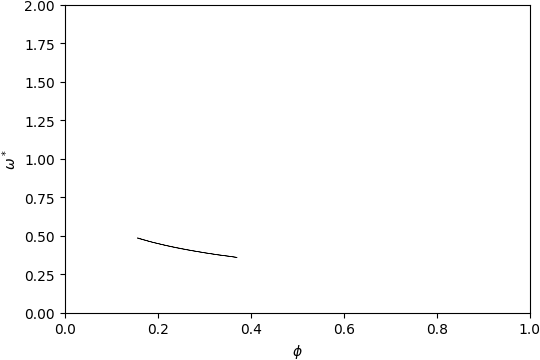

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

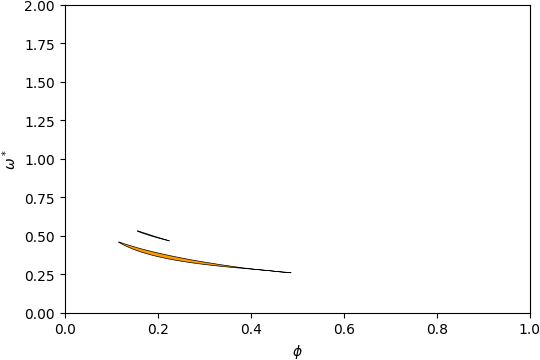

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 8\)

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 6\)

Gap Atlas for \(\varepsilon\) = 6 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 4-5

Below is the band structure and isosurface of hP20–ZnC₂N₂ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.37\) and filling fraction \(\phi = 0.213\).

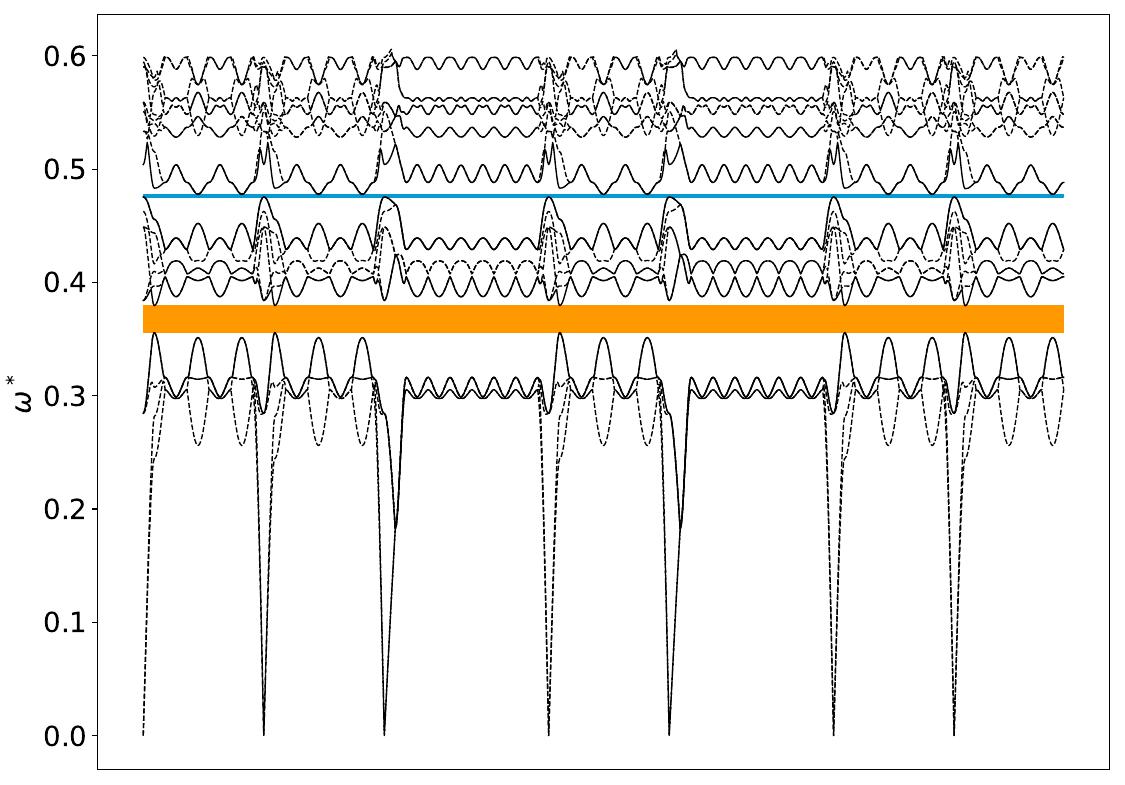

Band Structure across first Brillouin Zone.

View along \(a_1\).

Gap between Bands 10-11

Below is the band structure and isosurface of hP20–ZnC₂N₂ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.385\) and filling fraction \(\phi = 0.179\).

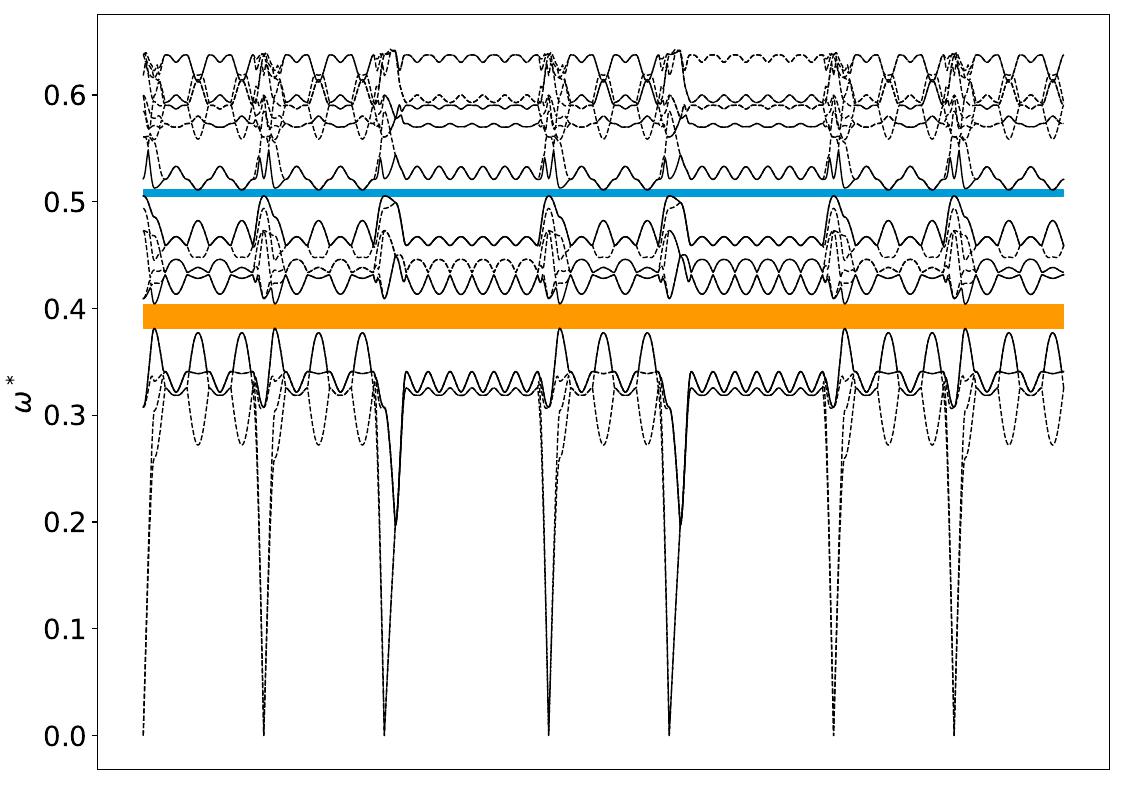

Band Structure across first Brillouin Zone.

View along \(a_1\).
