mC384-Al19.2Co12.8P32O128 (Inverse)

mC384–Al_19.2Co_12.8P₃₂O₁₂₈ (Inverse)

Image of mC384–Al_19.2Co_12.8P₃₂O₁₂₈ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= 1.3958468453~\hat{y}\\ a_3 &= -0.0530341404~\hat{x} + 2.777201298~\hat{z}\\\end{split}\]

Space Group: 15

Point Group of Structure: \(2/m\)

Structure DOI: https://doi.org/10.1021/ja057933l

Source: Crystallographic Open Database #4101096

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

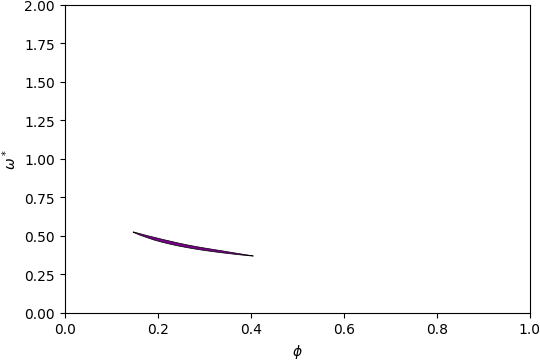

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

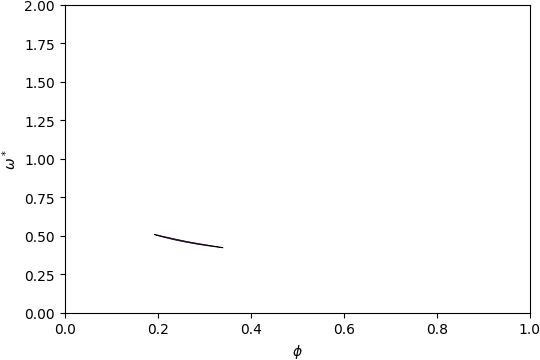

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

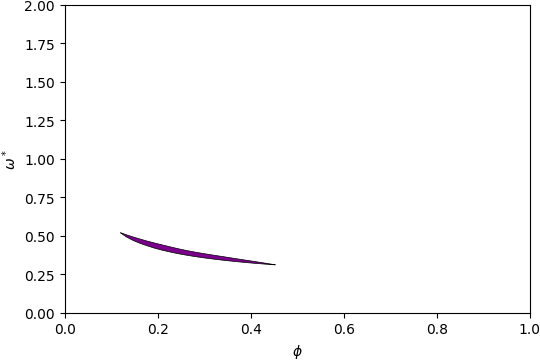

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 8\)

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 16-17

Below is the band structure and isosurface of mC384–Al_19.2Co_12.8P₃₂O₁₂₈ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.225\) and filling fraction \(\phi = 0.227\).

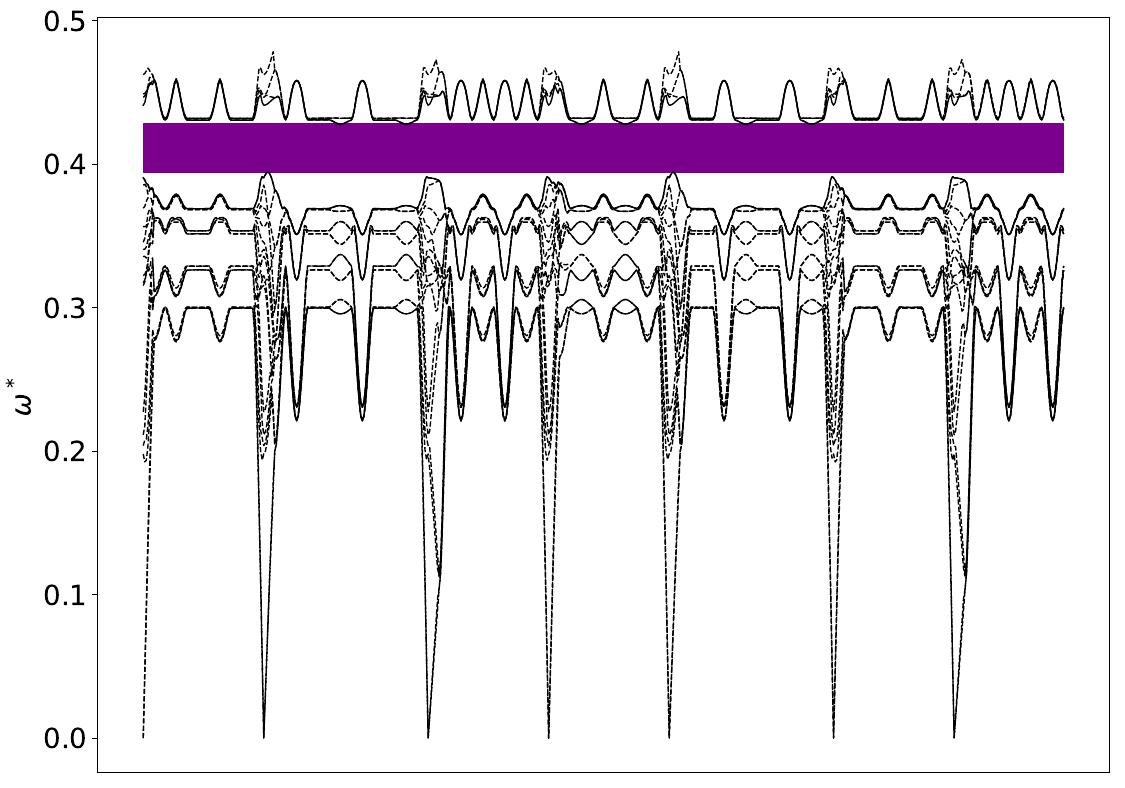

Band Structure across first Brillouin Zone.

View along \(a_1\).

View along \(a_2\).
