cF60-Cu6PbO8 (Inverse)

cF60–Cu₆PbO₈ (Inverse)

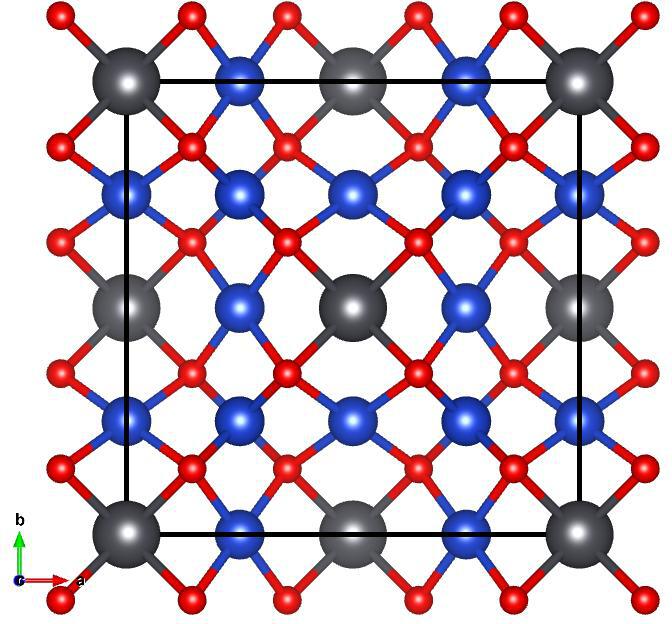

Image of cF60–Cu₆PbO₈ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= 1/\sqrt{2}~\hat{y} + 1/\sqrt{2}~\hat{z}\\ a_2 &= 1/\sqrt{2}~\hat{x} + 1/\sqrt{2}~\hat{z}\\ a_3 &= 1/\sqrt{2}~\hat{x} + 1/\sqrt{2}~\hat{y}\\\end{split}\]

Space Group: 225

Point Group of Structure: \(m\bar{3}m\)

Structure DOI: https://doi.org/10.1107/S0108768199011015

Source: Crystallographic Open Database #9007697

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

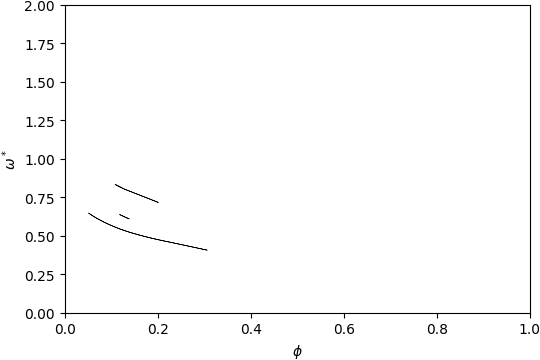

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

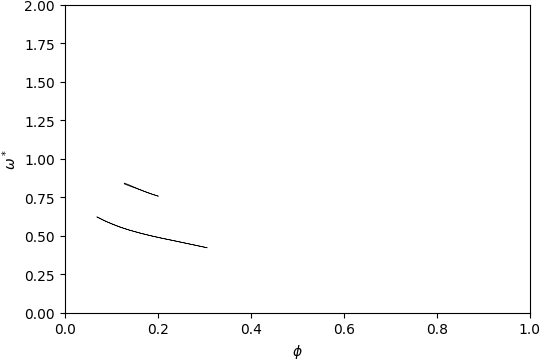

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 8\)

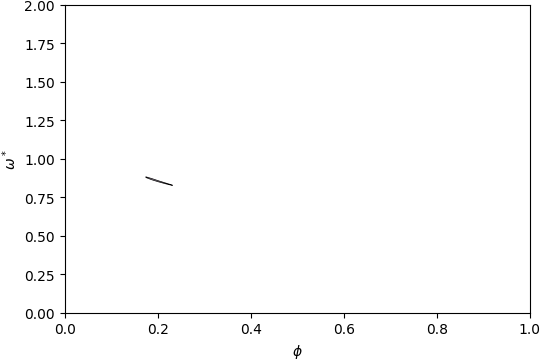

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 5-6

Below is the band structure and isosurface of cF60–Cu₆PbO₈ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.285\) and filling fraction \(\phi = 0.118\).

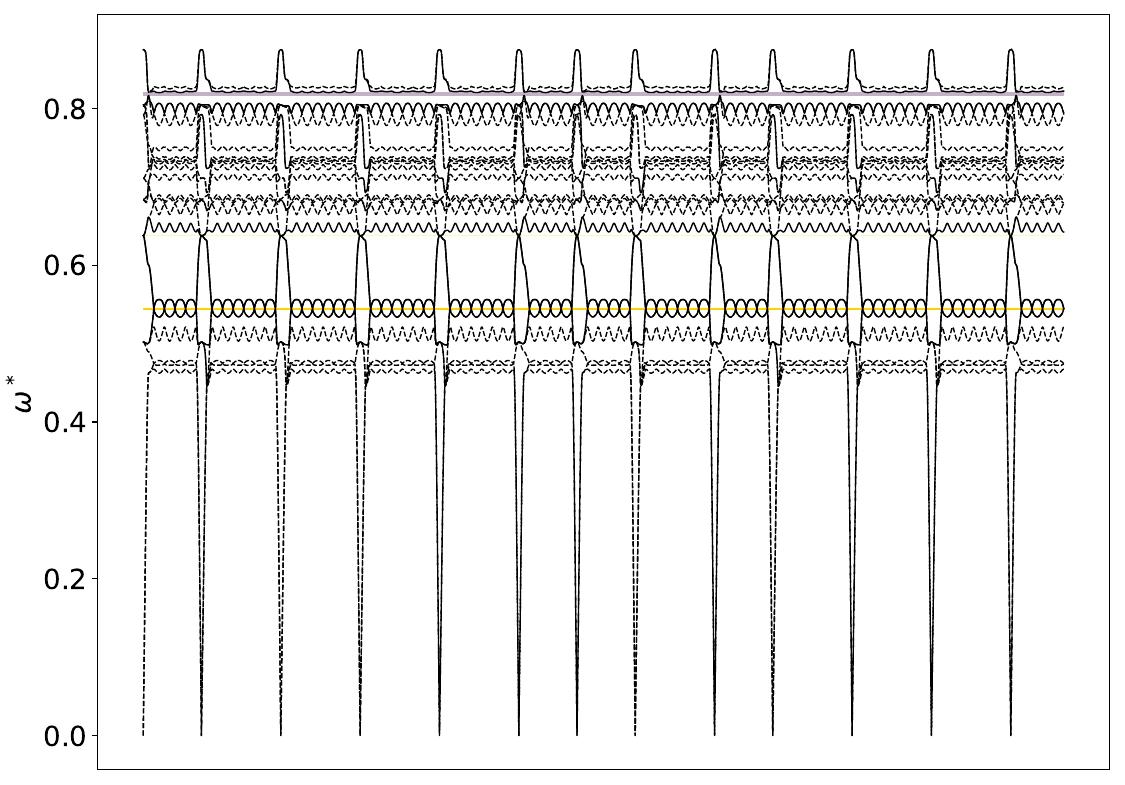

Band Structure across first Brillouin Zone.

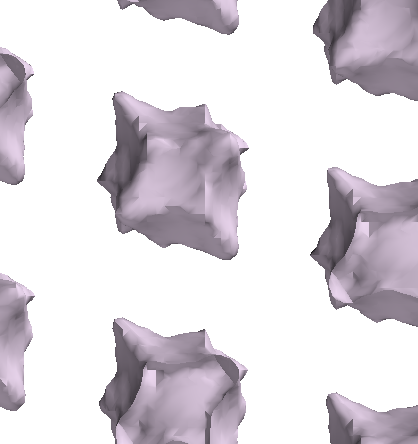

View along \(a_1\).

Gap between Bands 6-7

Below is the band structure and isosurface of cF60–Cu₆PbO₈ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.275\) and filling fraction \(\phi = 0.139\).

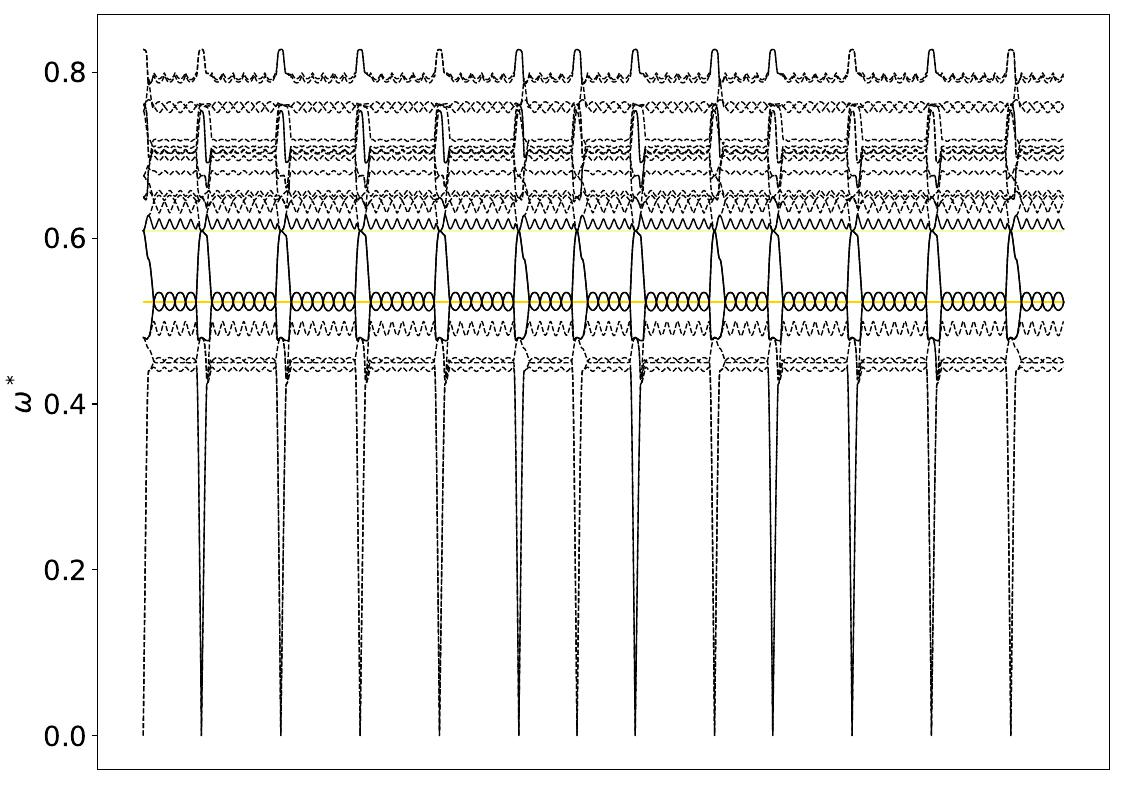

Band Structure across first Brillouin Zone.

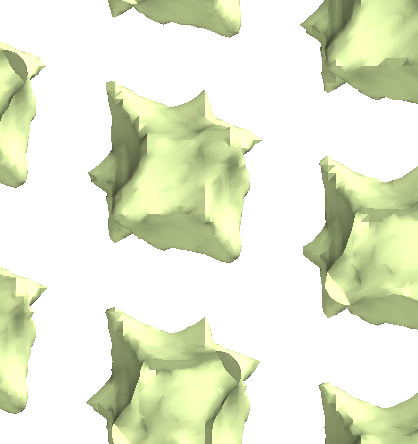

View along \(a_1\).

Gap between Bands 18-19

Below is the band structure and isosurface of cF60–Cu₆PbO₈ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.285\) and filling fraction \(\phi = 0.118\).

Band Structure across first Brillouin Zone.

View along \(a_1\).
