oP16-CdCu2GeS4 (Inverse)

oP16–CdCu₂GeS₄ (Inverse)

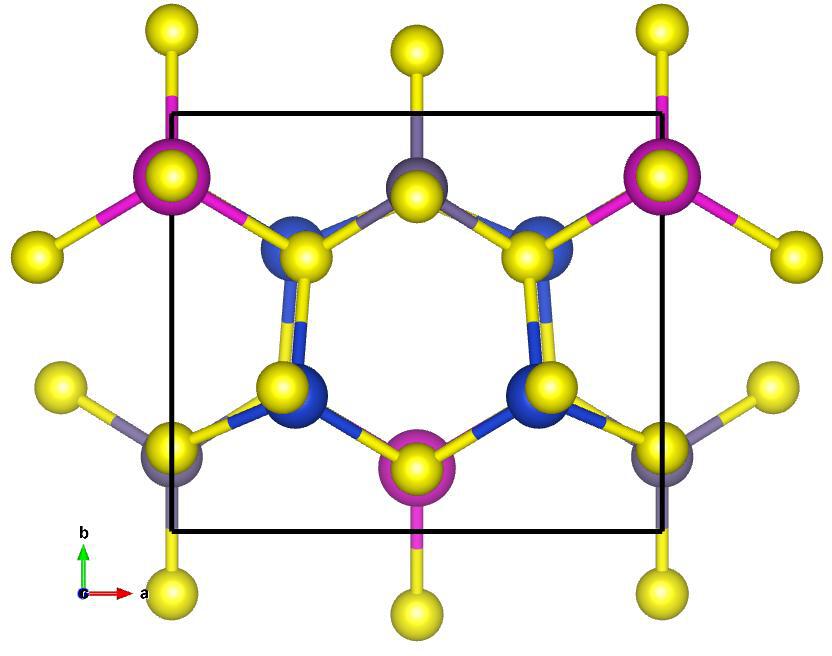

Image of oP16–CdCu₂GeS₄ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= 0.8521840748~\hat{y}\\ a_3 &= 0.8189027377~\hat{z}\\\end{split}\]

Space Group: 31

Point Group of Structure: \(mm2\)

Structure DOI: https://doi.org/10.1107/S0567740869003670

Source: Crystallographic Open Database #2107119

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

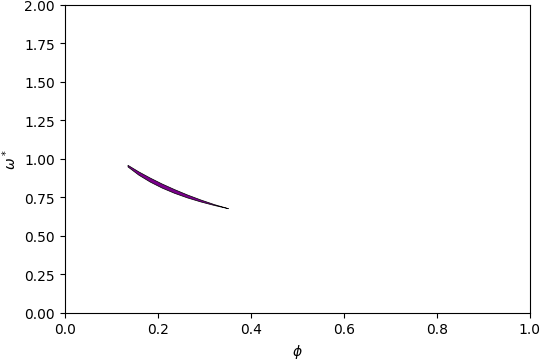

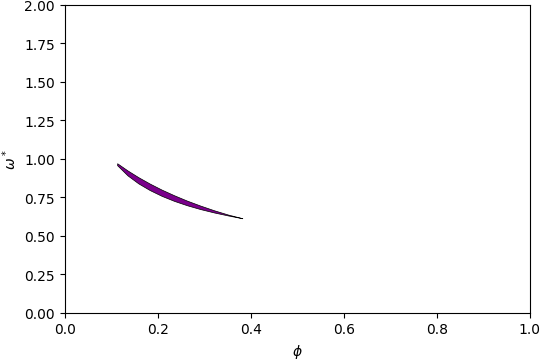

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

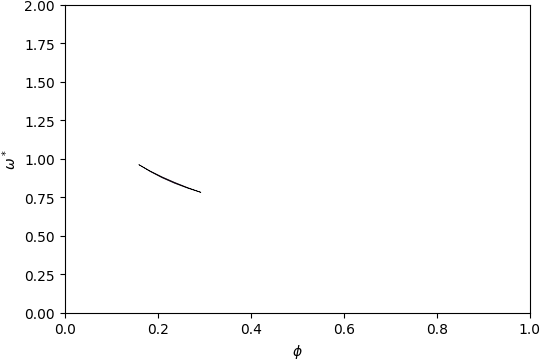

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 8\)

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 16-17

Below is the band structure and isosurface of oP16–CdCu₂GeS₄ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.23\) and filling fraction \(\phi = 0.184\).

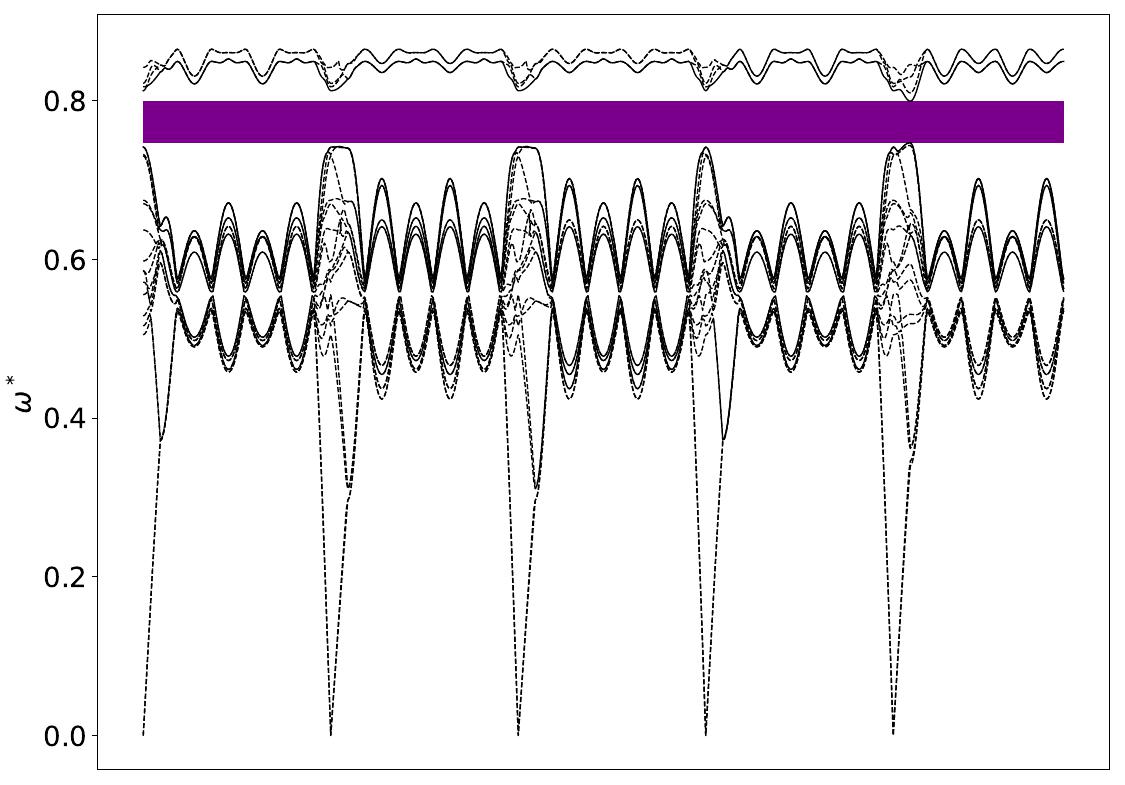

Band Structure across first Brillouin Zone.

View along \(a_1\).
