oP44-Te4CO6 (Direct)

oP44–Te₄CO₆ (Direct)

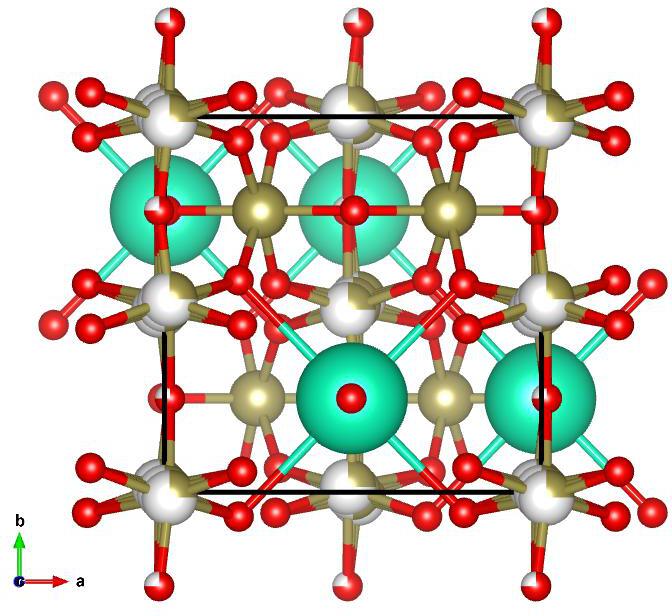

Image of oP44–Te₄CO₆ (Direct), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= 0.9964787461~\hat{y}\\ a_3 &= 1.4015149065~\hat{z}\\\end{split}\]

Space Group: 62

Point Group of Structure: \(mmm\)

Structure DOI: https://doi.org/10.1021/ic2010375

Source: Crystallographic Open Database #4326102

MPB Epsilon Input File: Download

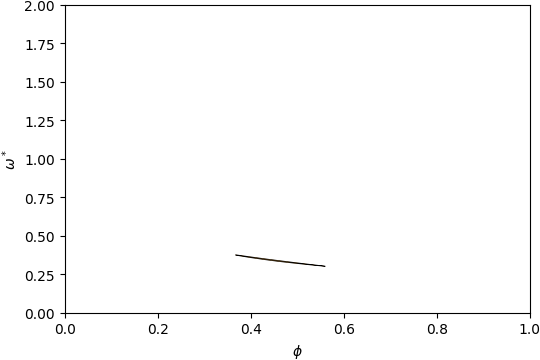

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

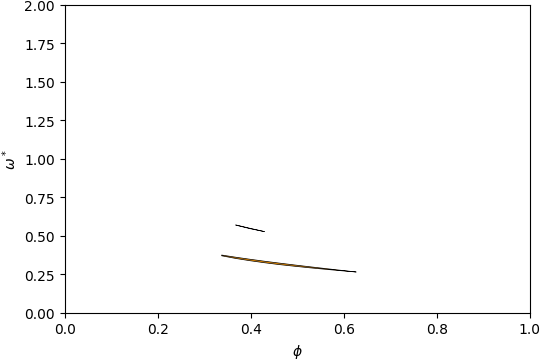

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 4-5

Below is the band structure and isosurface of oP44–Te₄CO₆ (Direct) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.165\) and filling fraction \(\phi = 0.462\).

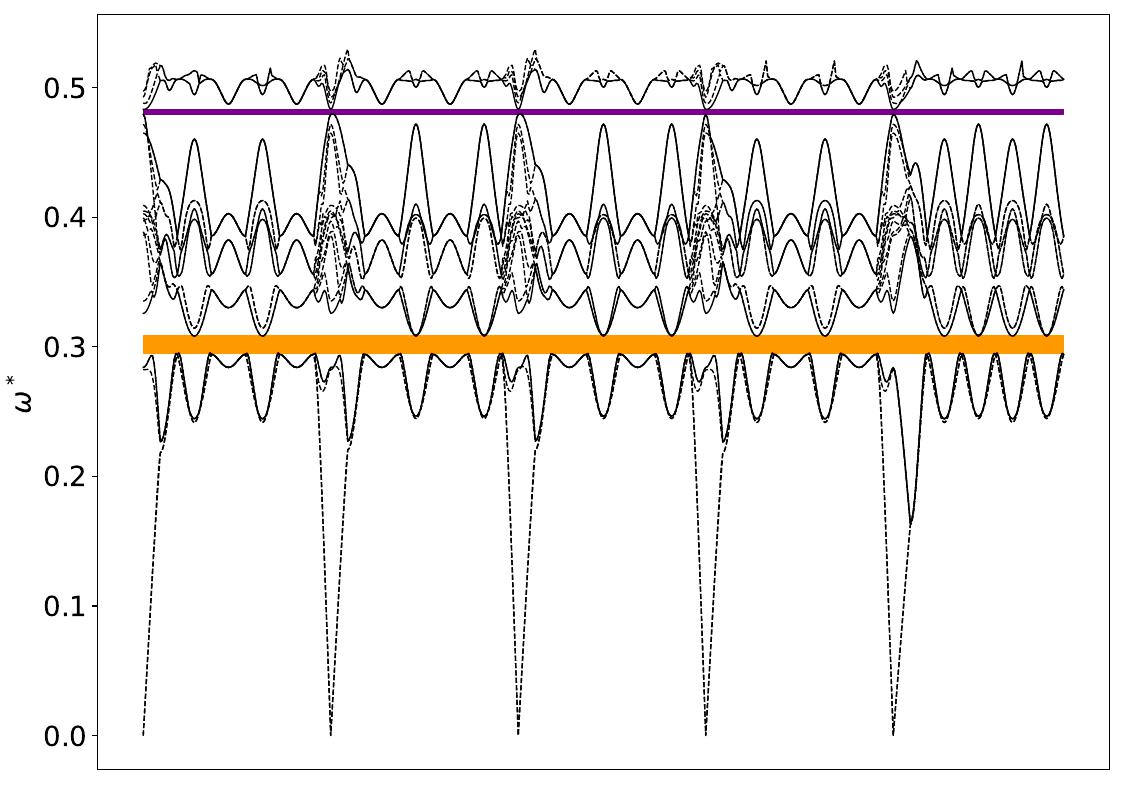

Band Structure across first Brillouin Zone.

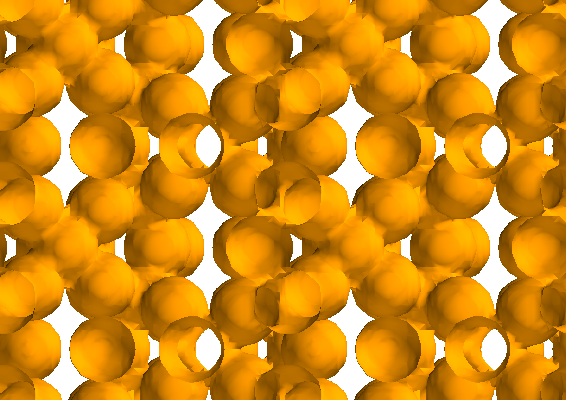

View along \(a_1\).

Gap between Bands 16-17

Below is the band structure and isosurface of oP44–Te₄CO₆ (Direct) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.155\) and filling fraction \(\phi = 0.399\).

Band Structure across first Brillouin Zone.

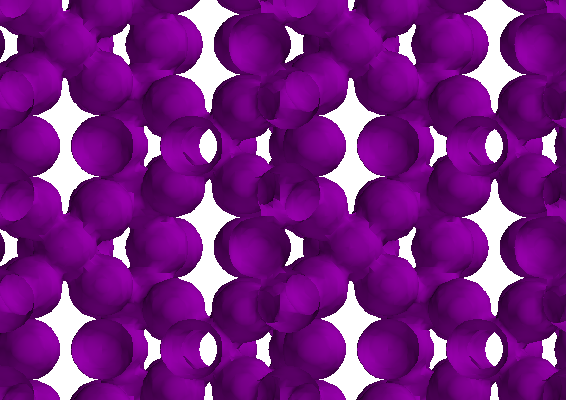

View along \(a_1\).
