aP4-Li (Inverse)

aP4–Li (Inverse)

../_images/structure25.jpg

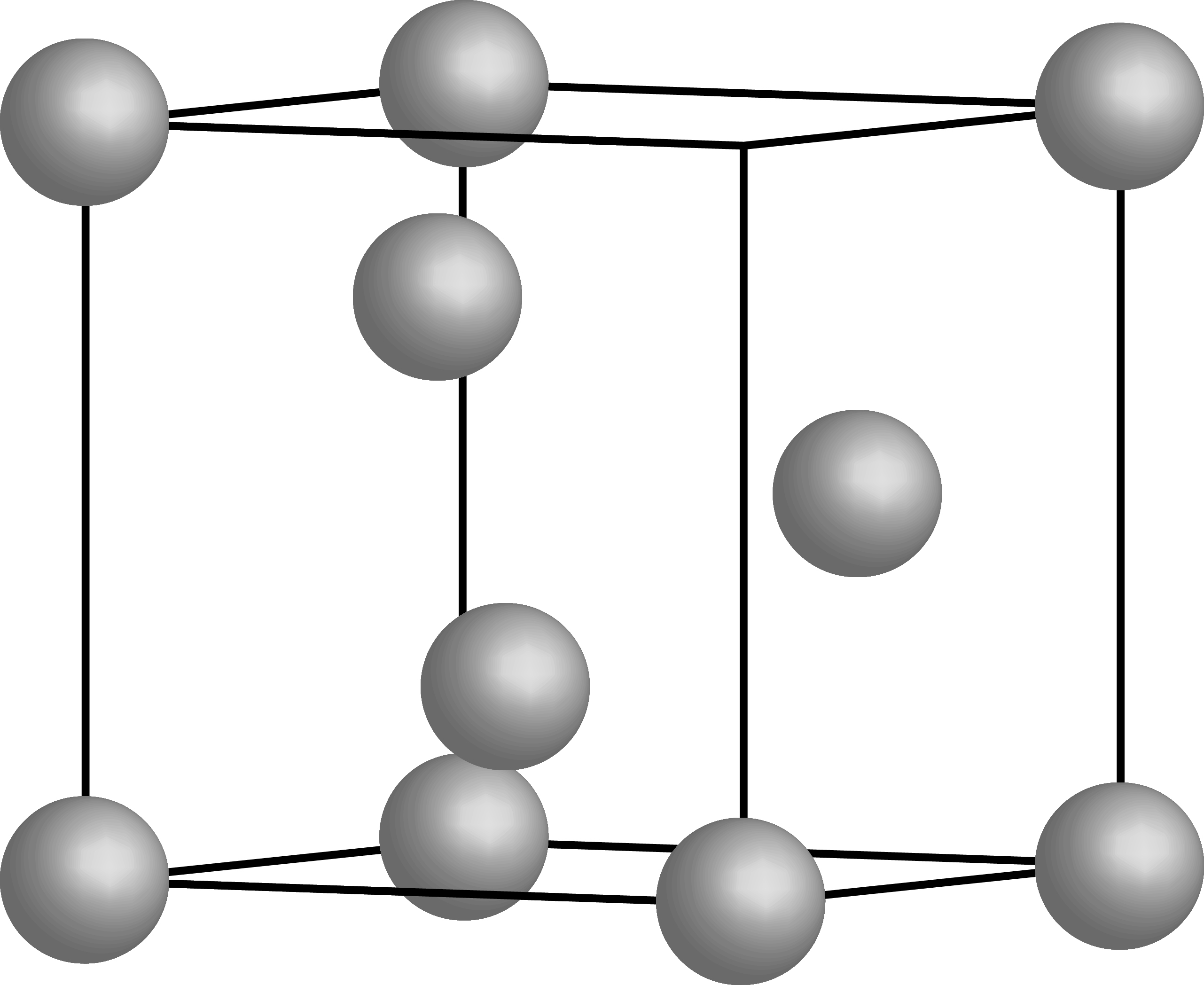

Image of aP4–Li (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x} + 0.0001~\hat{y} - 0.0004~\hat{z}\\ a_2 &= 1.0009~\hat{y}\\ a_3 &= 1.0003~\hat{z}\\\end{split}\]

Space Group: 1

Point Group of Structure: \(1\)

Structure DOI: https://doi.org/10.1021/nn204012y

Photonics DOI: https://doi.org/10.1063/1.1635664

Source: Found in Simulation

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

../_images/gap_atlas-1625.png

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

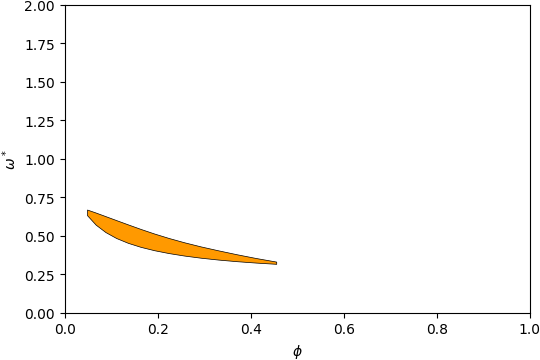

Gap Atlas for \(\varepsilon = 14\)

../_images/gap_atlas-1425.png

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

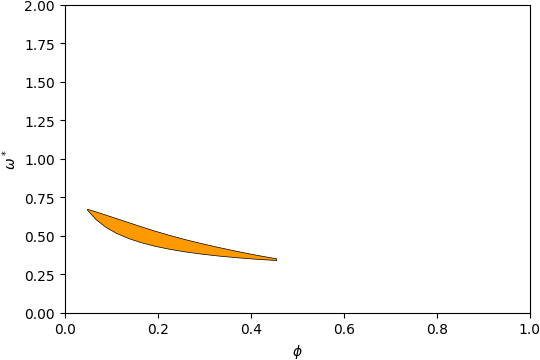

Gap Atlas for \(\varepsilon = 12\)

../_images/gap_atlas-1218.png

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

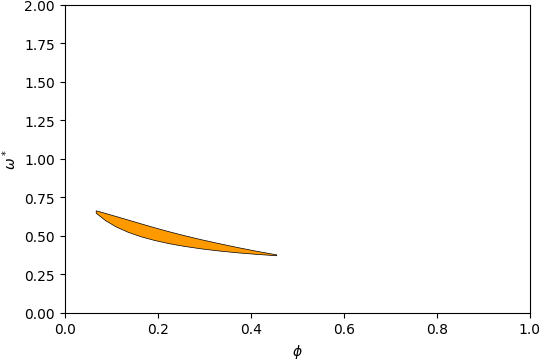

Gap Atlas for \(\varepsilon = 10\)

../_images/gap_atlas-1013.png

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 8\)

../_images/gap_atlas-85.png

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).

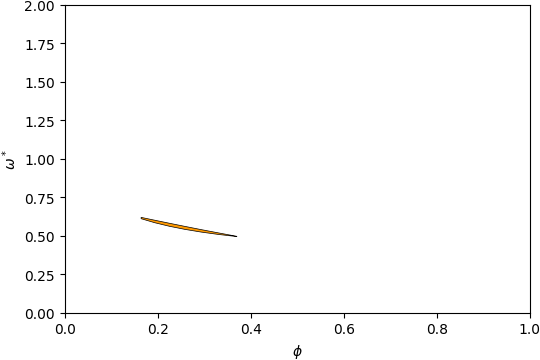

Gap Atlas for \(\varepsilon = 6\)

../_images/gap_atlas-63.png

Gap Atlas for \(\varepsilon\) = 6 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 4\)

../_images/gap_atlas-43.png

Gap Atlas for \(\varepsilon\) = 4 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 4-5

Below is the band structure and isosurface of aP4–Li (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.4\) and filling fraction \(\phi = 0.164\).

../_images/band_diagram_b=43.jpg

Band Structure across first Brillouin Zone.

../_images/aP4-Li_r@gap_4-5.png

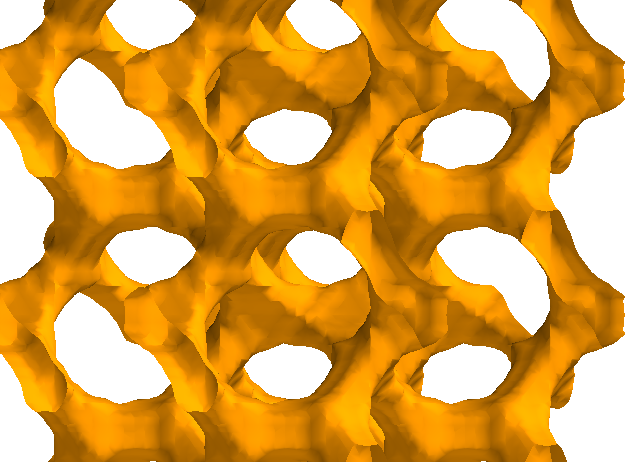

View along \(a_1\).

../_images/aP4-Li_r@gap_4-5_1.png

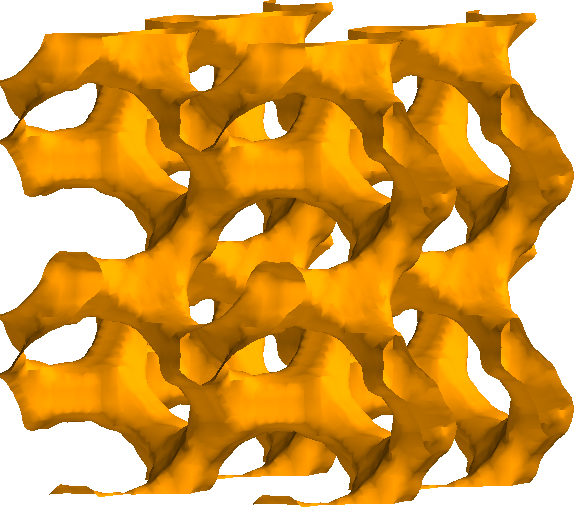

View rotated \(140^{\circ}\) about \(a_3\) and elevated \(0^{\circ}\).
