cP6-Cu2O (Inverse)

cP6–Cu₂O (Inverse)

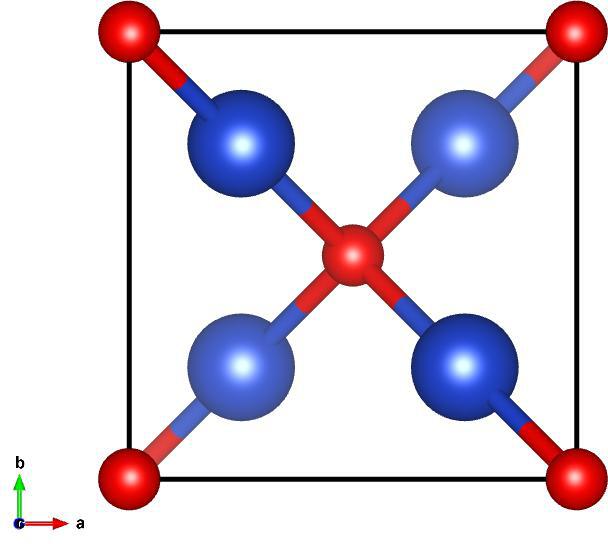

Image of cP6–Cu₂O (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= ~\hat{y}\\ a_3 &= ~\hat{z}\\\end{split}\]

Space Group: 224

Point Group of Structure: \(m\bar{3}m\)

Structure DOI: https://doi.org/10.1007/BF01390765

Source: Crystallographic Open Database #1000063

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 18-19

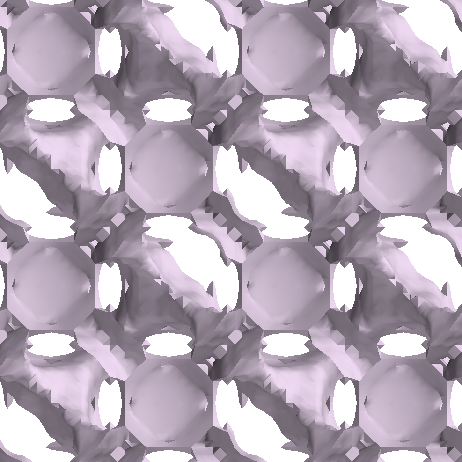

Below is the band structure and isosurface of cP6–Cu₂O (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.35\) and filling fraction \(\phi = 0.196\).

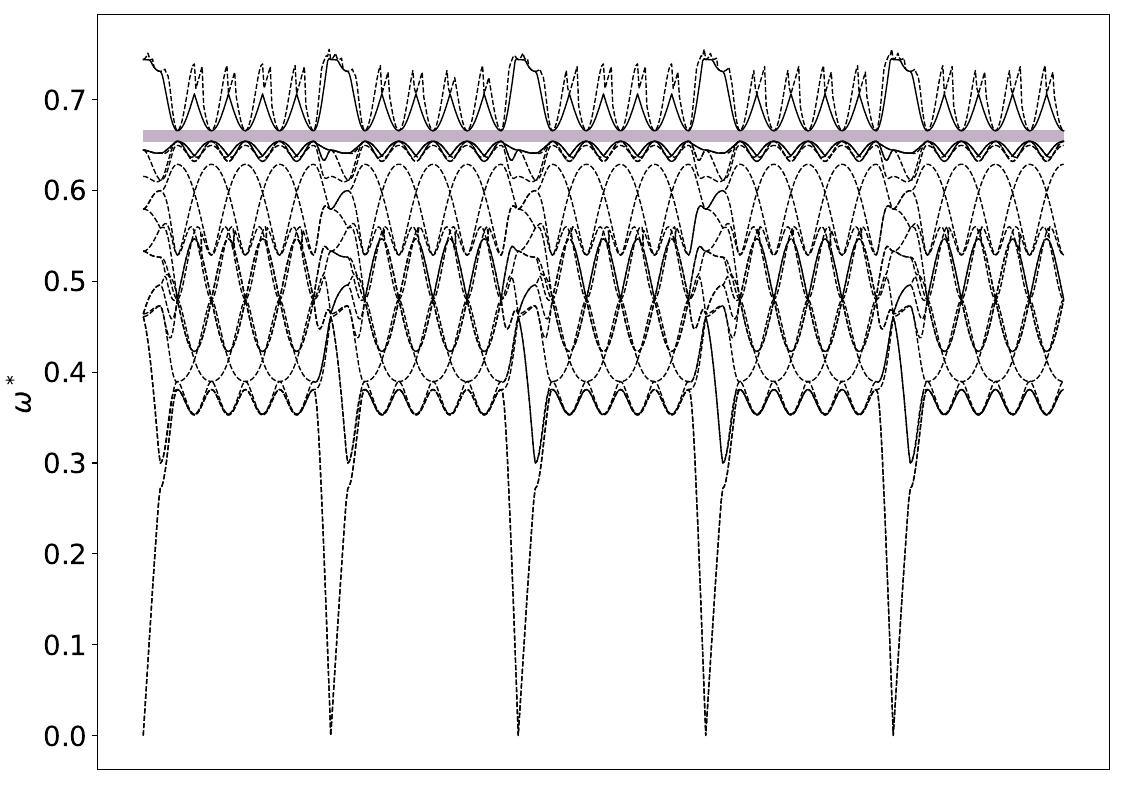

Band Structure across first Brillouin Zone.

View along \(a_1\).
