mC12-Te (Inverse)

mC12–Te (Inverse)

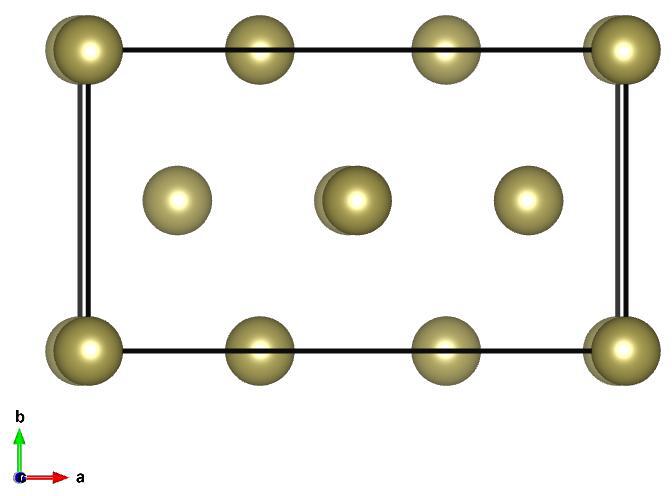

Image of mC12–Te (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= 0.5600246003~\hat{y}\\ a_3 &= 0.0154045897~\hat{x} + 0.4673189978~\hat{z}\\\end{split}\]

Space Group: 12

Point Group of Structure: \(2/m\)

Structure DOI: https://doi.org/10.1088/0953-8984/14/44/342

Source: Inorganic Crystallographic Database #97742

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 18-19

Below is the band structure and isosurface of mC12–Te (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.215\) and filling fraction \(\phi = 0.144\).

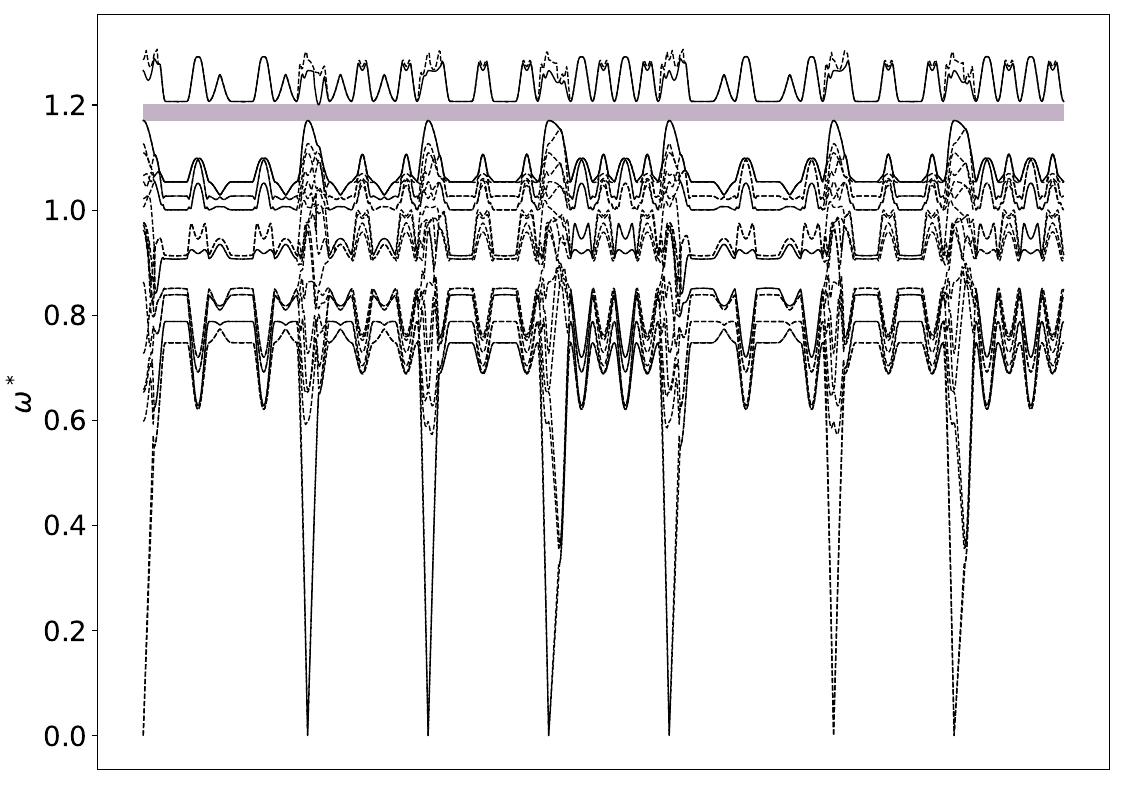

Band Structure across first Brillouin Zone.

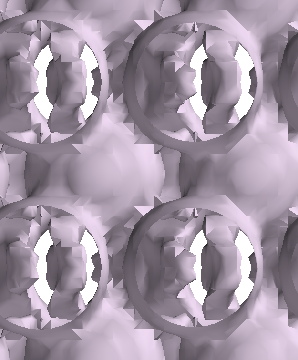

View along \(a_1\).
