tP28-Ta0.6Ti3.4Zn7.7O16 (Inverse)

tP28–Ta_0.6Ti_3.4Zn_7.7O₁₆ (Inverse)

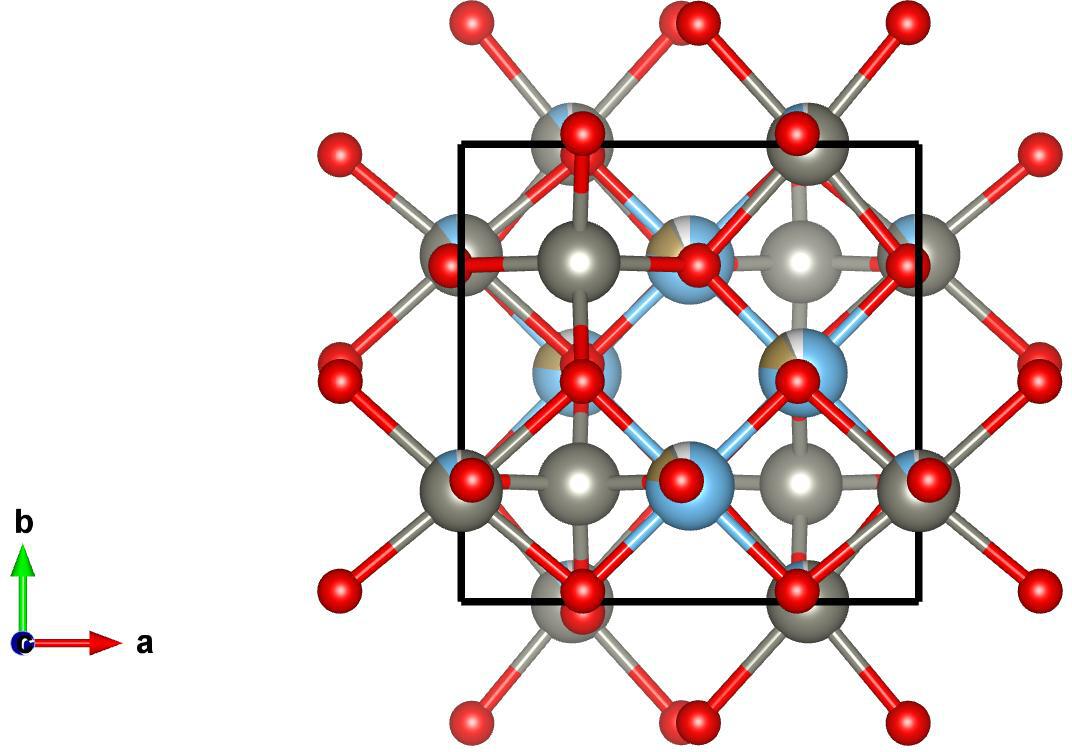

Image of tP28–Ta_0.6Ti_3.4Zn_7.7O₁₆ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= ~\hat{y}\\ a_3 &= 1.39871085~\hat{z}\\\end{split}\]

Space Group: 95

Point Group of Structure: \(422\)

Structure DOI: https://doi.org/10.2109/jcersj2.115.780

Source: Crystallographic Open Database #1544569

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 16-17

Below is the band structure and isosurface of tP28–Ta_0.6Ti_3.4Zn_7.7O₁₆ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.23\) and filling fraction \(\phi = 0.209\).

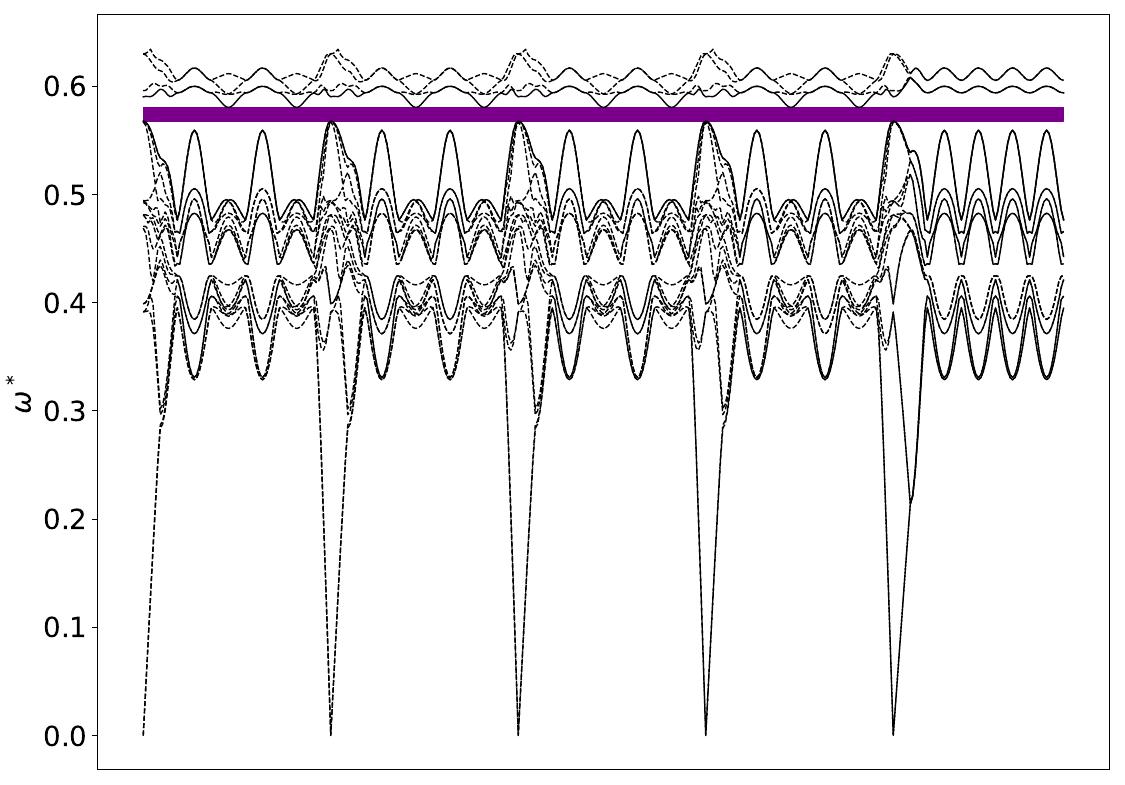

Band Structure across first Brillouin Zone.

View along \(a_1\).
