hP12-WO3 (Direct)

hP12–WO₃ (Direct)

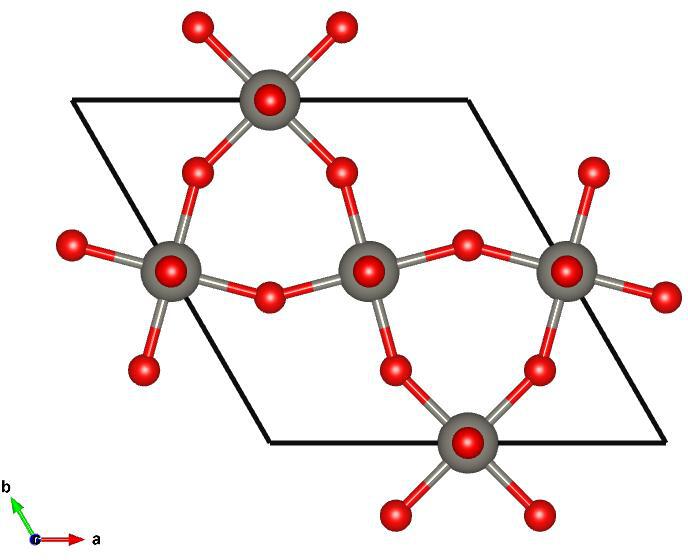

Image of hP12–WO₃ (Direct), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= -1/2~\hat{x} + \sqrt{3}/\sqrt{4}~\hat{y}\\ a_3 &= 0.5342559612~\hat{z}\\\end{split}\]

Space Group: 191

Point Group of Structure: \(6/mmm\)

Structure DOI: https://doi.org/10.1016/0022-4596(79)90199-3

Source: Crystallographic Open Database #1004057

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

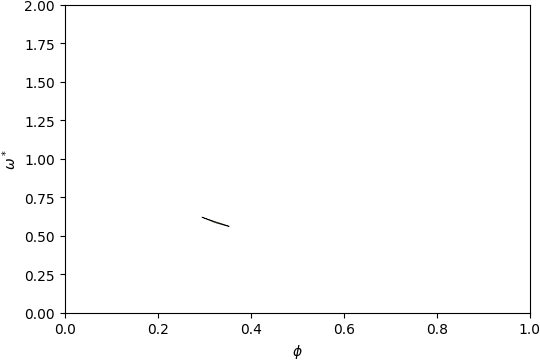

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 6-7

Below is the band structure and isosurface of hP12–WO₃ (Direct) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.145\) and filling fraction \(\phi = 0.295\).

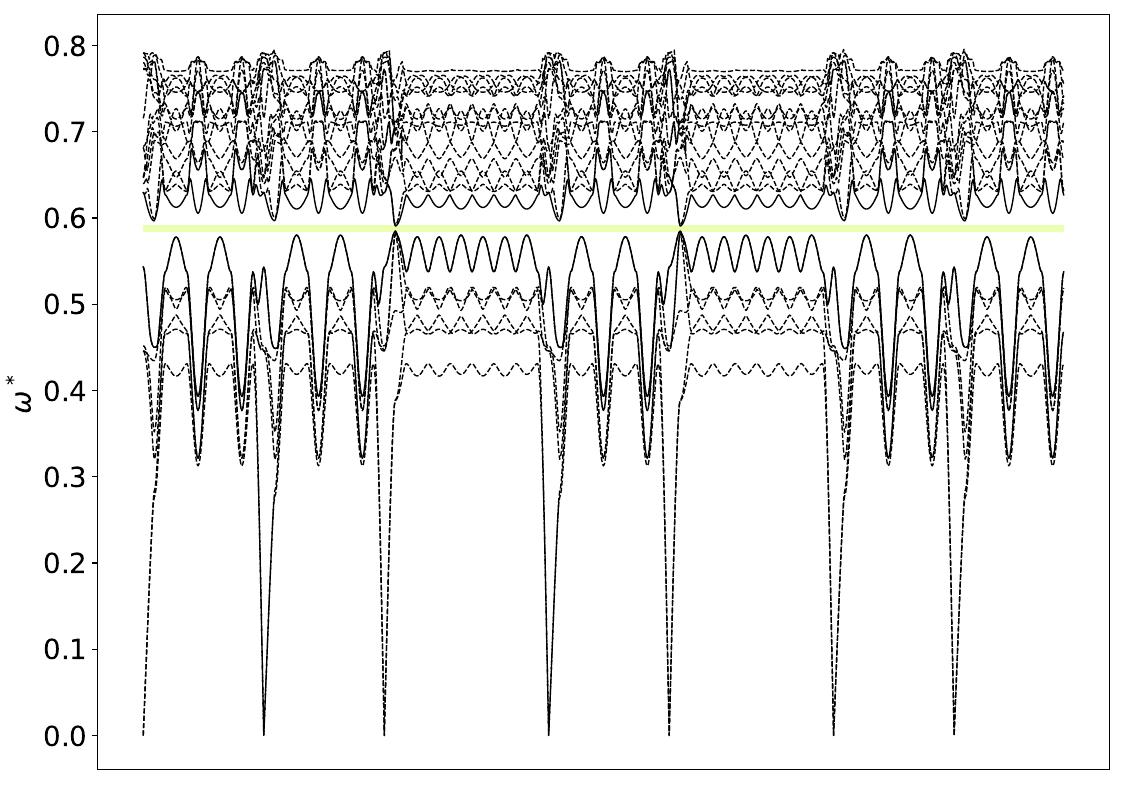

Band Structure across first Brillouin Zone.

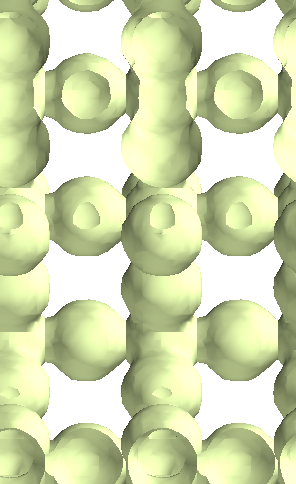

View along \(a_1\).
