oF16-Rb (Direct)

oF16–Rb (Direct)

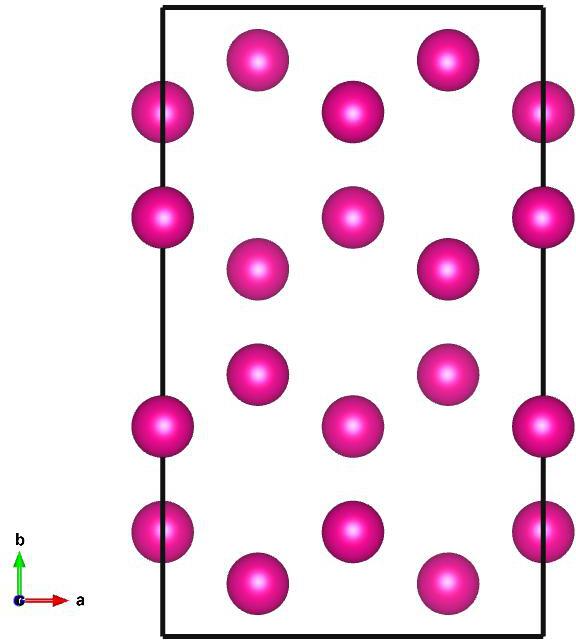

Image of oF16–Rb (Direct), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= 0.5177193342~\hat{y} + 0.8555505193~\hat{z}\\ a_2 &= 0.1696732195~\hat{x} + 0.8555505193~\hat{z}\\ a_3 &= 0.1696732195~\hat{x} + 0.5177193342~\hat{y}\\\end{split}\]

Space Group: 70

Point Group of Structure: \(mmm\)

Structure DOI: https://doi.org/10.1107/S0108768109053312

Source: Inorganic Crystallographic Database #248070

MPB Epsilon Input File: Download

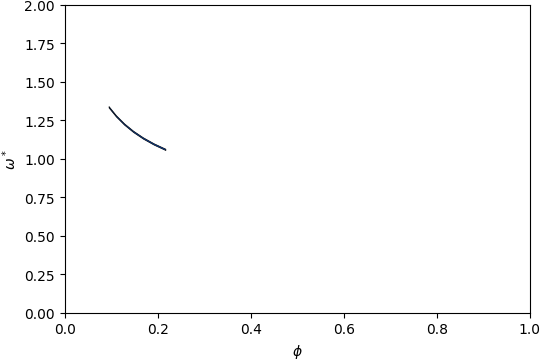

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 12-13

Below is the band structure and isosurface of oF16–Rb (Direct) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.125\) and filling fraction \(\phi = 0.148\).

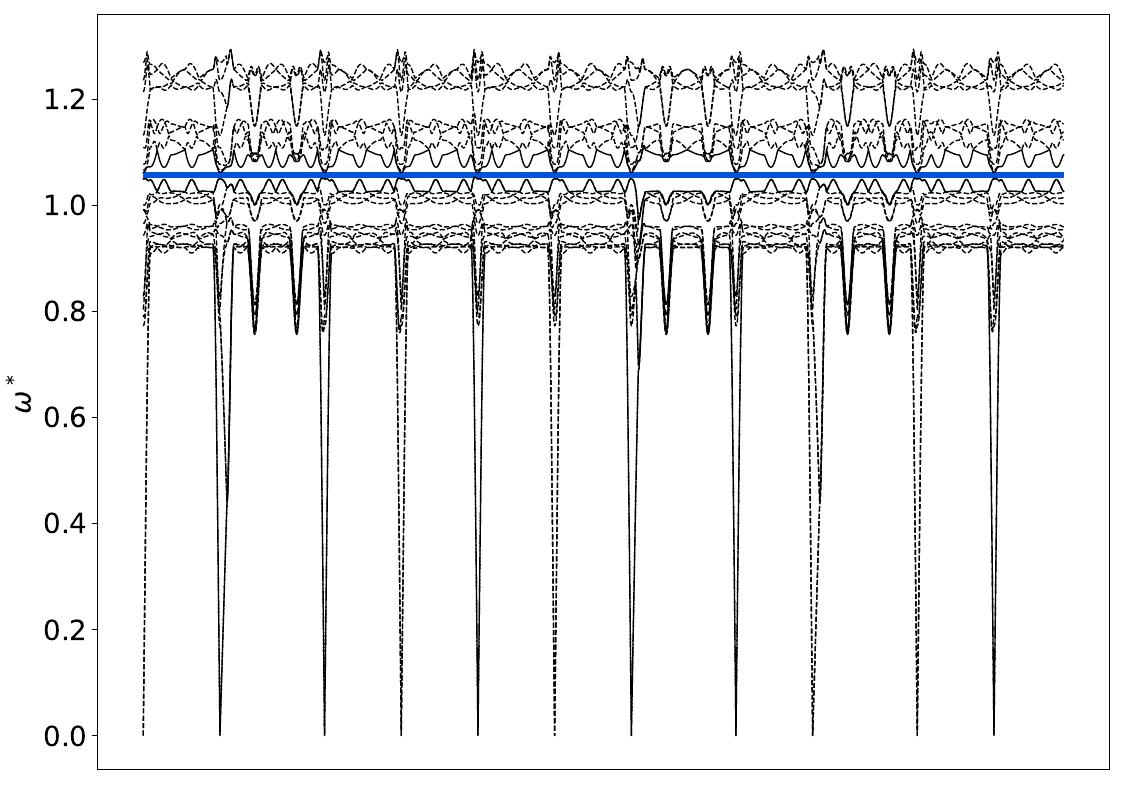

Band Structure across first Brillouin Zone.

View along \(a_1\).
